Name: CCS T- RH183 Marine Exhaust Gas Turbocharger
Brand: Marine Turbo Service
SKU: T- RH183
Availability: InStock

Detail Information

Product Name:	Marine Turbocharger, Marine Turbocharger Complete, T/C Complete, Turbocharger Assembly	Model:	T- RH183
New Or Second-Hand:	New Marine Turbocharger Replacement	Size:	Standard Size, Or As Customer's Request
Type1:	Exhaust Gas Turbocharger	Engine Type:	Diesel Engine
Turbine Type:	Single Stage Turbine	Quality:	High Perforce, Top And High Level, Guaranteed
Highlight:	T- RH183 Marine Exhaust Gas Turbocharger , CCS Marine Exhaust Gas Turbocharger , Marine Turbocharger

Product Description

T- T- RH series TC Complete Marine Turbocharger/High-speed T- T- RH183

/T- T- RH183 series marine turbocharger complete:

T- T- RH183 Marine Turbocharger belongs to /T- T- RH series exhaust gas turbocharger. T- T- RH consists of mixed flow turbine and radial flow compressor. This series of turbocharger can be used to match high-speed diesel engine. Inboard plain bearing is lubricated by the engine oil system. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. T- T- RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.

/ T- T- RH series turbochargers includes:

T- T- RH Series	AT Series	RU Series
T- T- RH133	AT14	RU110
T- T- RH143		RU120
T- T- RH163
T- T- RH183
T- T- RH203

/ T- T- RH series marine turbocharger complete dimensions and weight:

Type	Overall Dimension(mm)					Weight
	A	B	C	D	E	(Kg)
T- T- RH133	765	405	284	323	393	54
T- T- RH143	908	456	316	361	458	146
T- T- RH163	981	537	362	426	533	159
T- T- RH183	1188	655	443	518	656	289

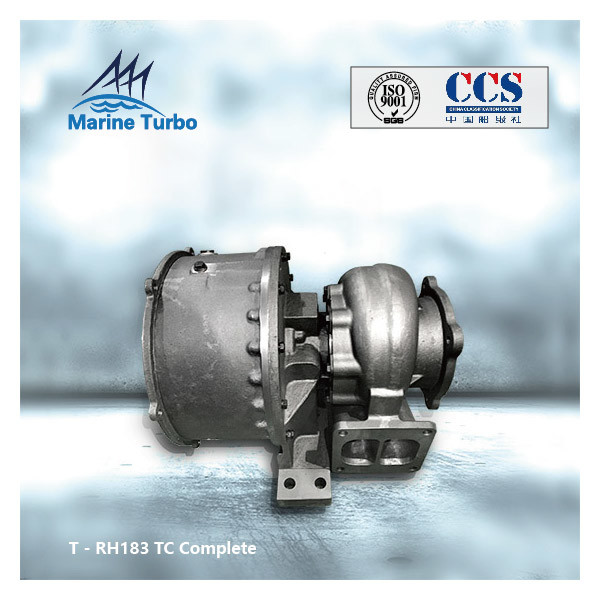

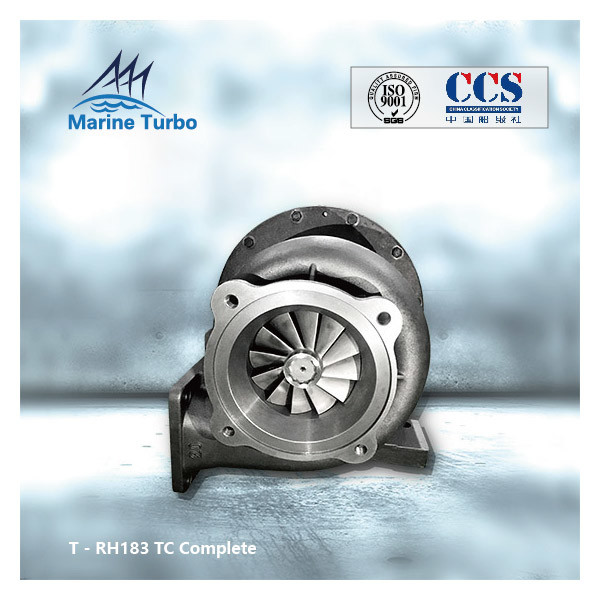

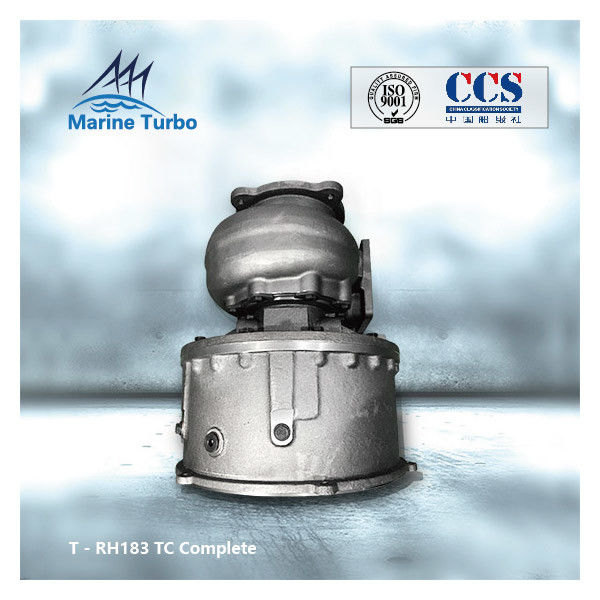

T- T- RH183 series marine turbocharger complete picture:

CCS T- RH183 Marine Exhaust Gas Turbocharger 0

Tag:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- RH183

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 pcs / month
