T-RH133 Aluminum Compressor Casing Marine Turbocharger

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS; GL
Model Number: T-RH133
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detail Information
Model: T- RH133 Product Name: Marine Turbocharger, Marine Turbocharger Complete, T/C Complete, Turbocharger Assembly
New Or Second-Hand: New Marine Turbocharger Replacement Size: Standard Size, Or As Customer's Request
Type1: Exhaust Gas Turbocharger Fuel: Diesel
Engine Type: Diesel Engine Turbine Type: Mixed Flow Turbine
Quality: High Performance, Top And High Level, Guaranteed
High Light:

Aluminum Compressor Casing Turbocharger




765mm Marine Turbocharger

Product Description

T- IHI / T- RH133 Marine Turbocharger TC Complete in Automotive And Industrial Engines

T- IHI/T- RH133 series marine turbocharger complete:

T- RH133 Marine Turbocharger belongs to T- IHI/T- RH series exhaust gas turbocharger. T- RH  consists of mixed flow turbine and radial flow compressor. This series of turbocharger can be used to match high-speed diesel engine. Inboard plain bearing is lubricated by the engine oil system. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. T- RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.

T- IHI / T- RH series turbochargers includes:

  T- RH Series T- AT Series T- RU Series
T- IHI T- RH133 T- AT14 T- RU110
T- RH143   T- RU120
T- RH163
T- RH183
T- RH203

T- IHI / T- RH series marine turbocharger complete dimensions and weight:

  Type Overall Dimension(mm) Weight
T- IHI   A B C D E (Kg)
T- RH133 765 405 284 323 393 54
T- RH143 908 456 316 361 458 146
T- RH163 981 537 362 426 533 159
T- RH183 1188 655 443 518 656 289

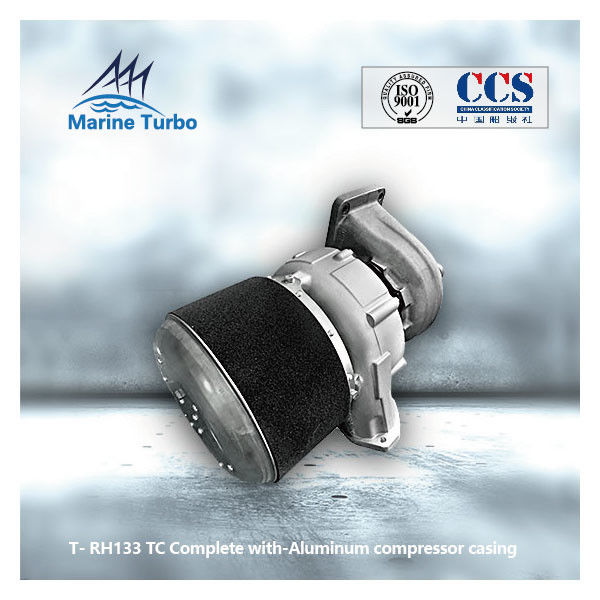

T- RH133 series marine turbocharger complete picture:

T-RH133 Aluminum Compressor Casing Marine Turbocharger 0T-RH133 Aluminum Compressor Casing Marine Turbocharger 1



q1. what is your main products?
a: our main products are turbocharger complete, cartridge complete, turbo casing
q2. what is your terms of packing?
a: neutral package or strong cartons, according to your requirements .
q3. what is your terms of payment?
a: paypal, t/t, western union, l/c.

q4. what is your terms of delivery?
a: exw, fob, cfr, cif.

q5. how about your delivery time?
a: most model are in stock. generally, we can ship it as soon as receiving your payment. the specific delivery time depends on the items and the quantity of your order.

q6. do you test all your goods before delivery?
a: yes, we have 100% balancing test before delivery.
