| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS |
| Model Number: | AT 14-e4 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 4-5 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 pcs / month |
| Model: | AT14 -e4 | Type: | Marine Turbocharger |
|---|---|---|---|
| Pressure Ratio: | 5.0 | Engine Power Range: | 320 -750 KW |
| Cooling Method: | Oil-cooled Bearing Casing | With Foot Or Not: | With Foot |
| Quality: | High Performance,High Level,Top,Guaranteed | Application: | Automotive, Heavy Truck, Construction, Marine And Industrial Engine |
| High Light: | 5.0 Pressure Ratio Marine Turbocharger,AT14 Marine Turbocharger,Oil Cooled Marine Turbocharger |
||

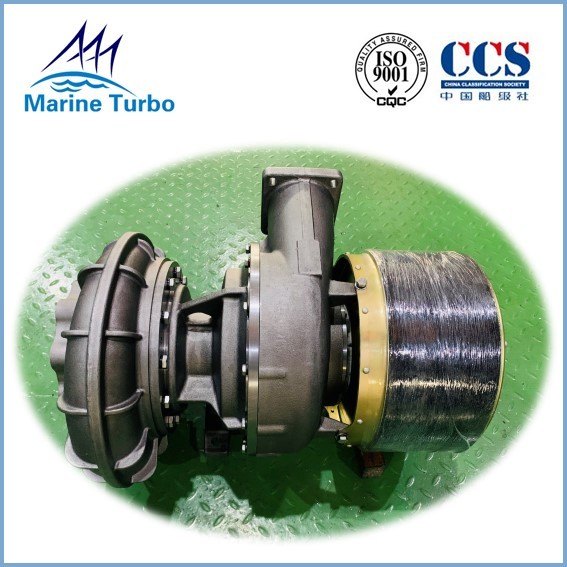

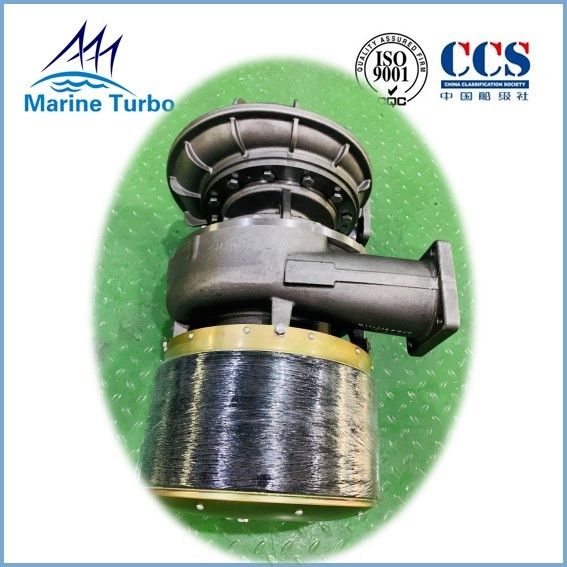

IHI AT 14 -e4 marine diesel turbocharger has the design features as below:
| Description | Dimension (mm) |
| rotor length | 300 |
| diameter of turbine inlet | 140 |
| diameter for compressor outlet | 140 |
| RH Series | AT Series | RU Series | |
| IHI | RH133 | AT14 | RU110 |
| RH143 | RU120 | ||
| RH163 | |||
| RH183 | |||
| RH203 |
Marine turbocharger/Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.
Marine Turbo has been specialized in turbocharger spare parts replacement in Marine industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium product quality and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for MAN, ABB, KBB, MET, IHI and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance and repair needs for various brands with a quick response and a reasonable price.
