T- TPS57E01 Turbocharger Cartridge Complete For Diesel Marine Turbo Chargers

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO
Model Number: T- TPS57E01
Minimum Order Quantity: 1 pcs
Packaging Details: wood case
Delivery Time: 3-4 working days
Payment Terms: T/T
Supply Ability: 150 pcs / month
Detail Information
Model: T- TPS52E01 Product Name: Turbo Cartridge, Cartridge Assembly, Complete Cartridge
Size: Standard Size Type: ABB Marine Turbocharger
Fuel: Diesel Turbine Type: Single Stage Mixed-flow Turbine
Application: Marine Engine, Drilling And Mining Industry, Generator, Construction/mining/agriculture Machinery Quality: Balancing Test,High Quality
Warranty: 12 Months For Fixed Parts, 6 Months For Rotary Parts
High Light:

Turbocharger Cartridge Complete


Diesel Turbocharger Cartridge


ABB Turbocharger Cartridge

Product Description

T- TPS57E01 Turbocharger Cartridge Complete For Diesel ABB Marine Turbo Chargers


T- TPS series turbochargers features:

  • T-TPS series marine turbocharger is a mixed-flow turbocharger;
  • It consists of single-stage mixed-flow turbine and centrifugal compressor;
  • Adopts inboard support semi-floating sliding bearing and external lube oil system.
  • Single stage of marine turbocharger can meet the requirement of 500kw~3000kw high speed diesel engine.
  • T- TPS series marine turbochargers are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines due to T- TPS series turbocharger has the advantages, such as simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability.


T- TPS series Marine turbocharger weight only for reference:

Type Weight(Kg)
T- TPS48 115
T- TPS52 166
T- TPS57 266
T- TPS61 458

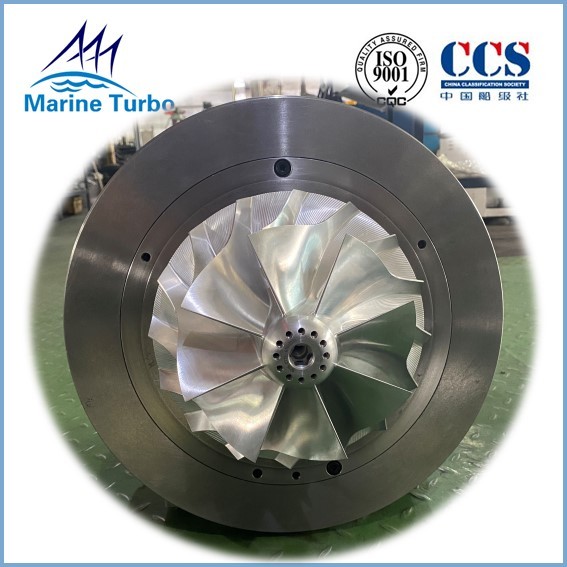

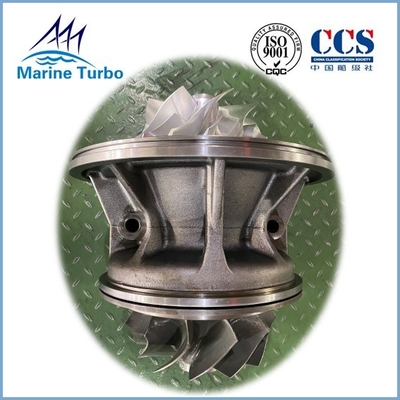

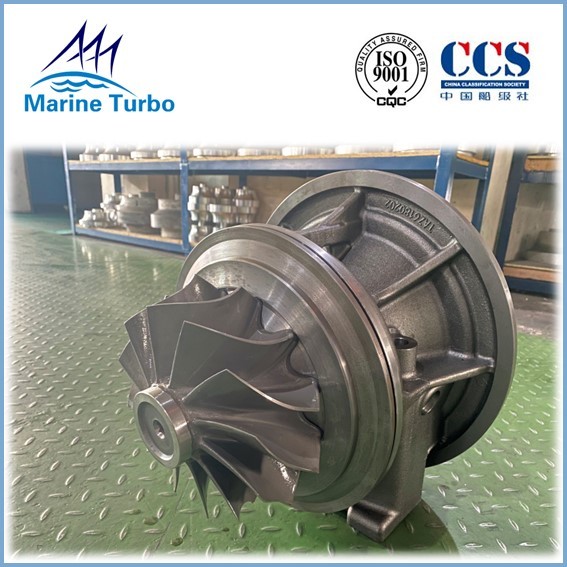

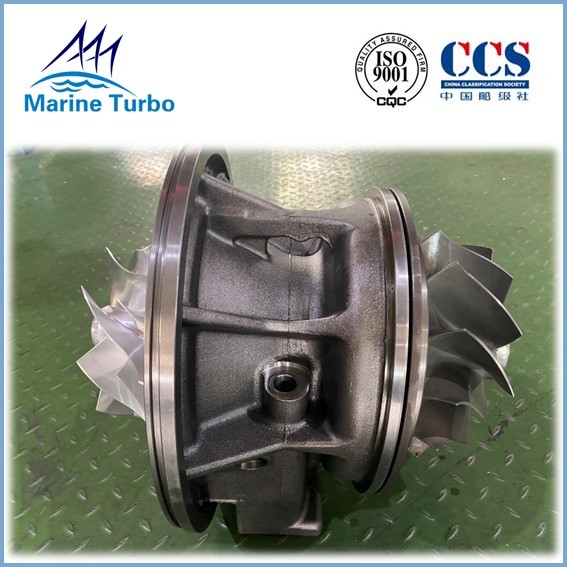

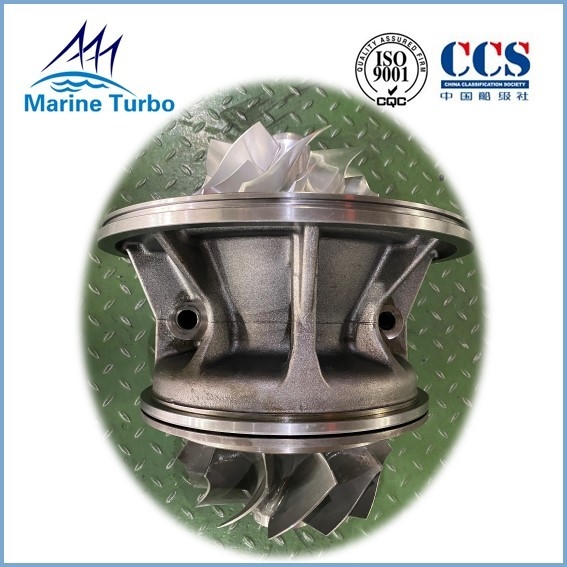

More photos for T- TPS57E01 Turbocharger cartridge complete:

T- TPS57E01 Turbocharger Cartridge Complete For Diesel Marine Turbo Chargers 0


T- TPS57E01 Turbocharger Cartridge Complete For Diesel Marine Turbo Chargers 1



Q1. What is the origin of country?

A: The complete TC is made by our factory in China.


Q2. How can I order it?

A: Before you issue the order, please send the nameplate or spec to us for checking. Then we'll make the quote for you before you send the PO to us.


Q3. Can you supply other type of spare parts for TPS Series?

A: Yes, we can supply the spare parts replacement for T- TPS44, T- TPS48, T- TPS52, T- TPS57, T- TPS61.


Q4. What is the warranty?

A: 12 months for fixed parts; 6 months for rotary parts.


Q5. How many years of manufacturing experience have you had on marine turbocharger field?

A: More than 20 years. Our factory was established in 1999.
