T- TPS48 Turbo Charger Cartridge Assembly For Single Staged Turbocharger

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS
Model Number: T- TPS48
Minimum Order Quantity: 1 pcs
Packaging Details: wooden case or according to the customer's request
Delivery Time: 2-3 working days
Payment Terms: T/T
Supply Ability: 300 pcs / month
Detail Information
Model: T- TPS48 Product Name: Turbocharger Cartridge, Turbo Charger Cartridge Assembly, Turbo Cartridge Replacement
Turbine Type: Single Stage Mixed-flow Turbine Fuel: Disesl
Application: Marine Engine, Drilling And Mining Industry, Generator, Construction/mining/agriculture Machinery Quality: Balancing Test,High Quality
Package: Wooden Case
High Light:

ABB Turbo Charger Cartridge


Single Staged Turbo Charger Cartridge


Single Stage Turbocharger Cartridge

Product Description

T- TPS48 Turbo Charger Cartridge Assembly For Single Staged ABB Turbocharger Components


T- TPS series marine turbocharger design features:

T- TPS48 Turbo Charger Cartridge Assembly belongs to one part of T- TPS series Marine turbocharger and it has the features as below:

  1. It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
  2. it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
  3. cooled & uncooled bearing casing design.
  4. The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
  5. The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
  6. The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
  7. It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.


ABB / TPS turbocharger types include:

Brand T- TPS Series
T- TPS48
T- TPS52
T- TPS57
T- TPS61

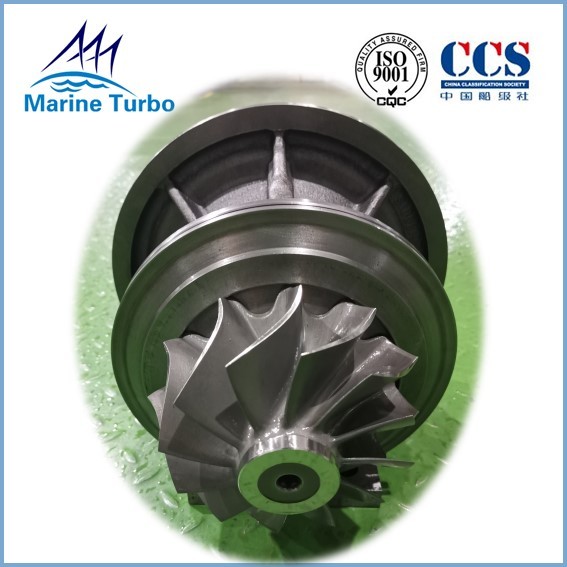

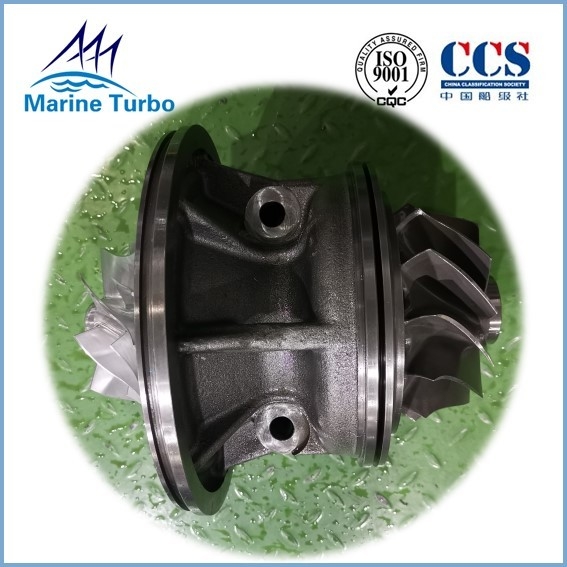

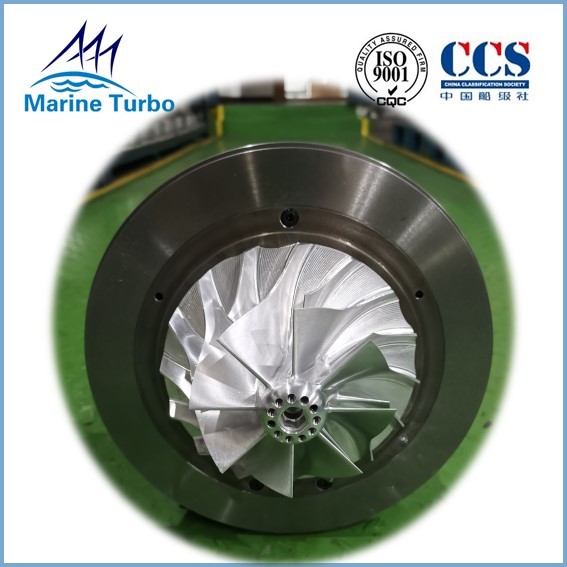

More photo for T- TPS48 Turbo Charger Cartridge Assembly:

T- TPS48 Turbo Charger Cartridge Assembly For Single Staged Turbocharger 0



Q1. What is the origin of country?

A: The alternative complete TC for atermarket is made by our factory in China.


Q2. How can I order it?

A: Before you issue the order, please send the nameplate or spec to us for checking. Then we'll make the quote for you before you send the PO to us.


Q3. What is the warranty?

A: 12 months for fixed parts; 6 months for rotary parts.


Q4. How many years of manufacturing experience have you had on marine turbocharger field?

A: More than 20 years. Our factory was established in 1999.
