| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO |
| Model Number: | RR181 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Wood case or according to customer's requirement |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 Sets / month |
| Model: | RR181 | Product Name: | Complete Turbocharger, Marine Turbocharger Complete |
|---|---|---|---|
| Size: | Standard Size | Type: | Diesel Engine Turbocharger |
| Engine Type: | High-speed Diesel Engine And Fuel Gas Engine | Turbine Type: | Mixed-flow Turbine |
| Compressor Type: | Radial Compressor | Pressure Ratio: | 3.5 |
| Power Range: | 500 - 1,800 KW | Fuel Consumption: | Lower Engine Fuel Consumption |
| Quality: | High-output, High Efficiency, Lower Engine Fuel Consumption, Guaranteed | Warranty: | 12 Months |
| Highlight: | Marine Complete Turbocharger,Radial Compressor Marine Turbocharger,Charger Engines Marine Turbocharger |
||
| RR Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | Weight (kg)* | |
| RR131 | 210 | 375.5 | 326.5 | 314 | 106 | 130 | 182 | 121 | 141 | 64 | |
| RR151 | 232.5 | 432.5 | 371.5 | 362 | 121 | 139.5 | 210 | 140 | 161.5 | 103 | |
| RR181 | 284.5 | 527.5 | 488 | 443 | 148 | 170.5 | 258 | 170.5 | 197.5 | 184 | |
| RR221 | 348.5 | 642 | 585.5 | 542 | 181 | 209 | 314 | 255 | 241.5 | 334 |
Note: *without filter silencer/suction branch and without cooling water.

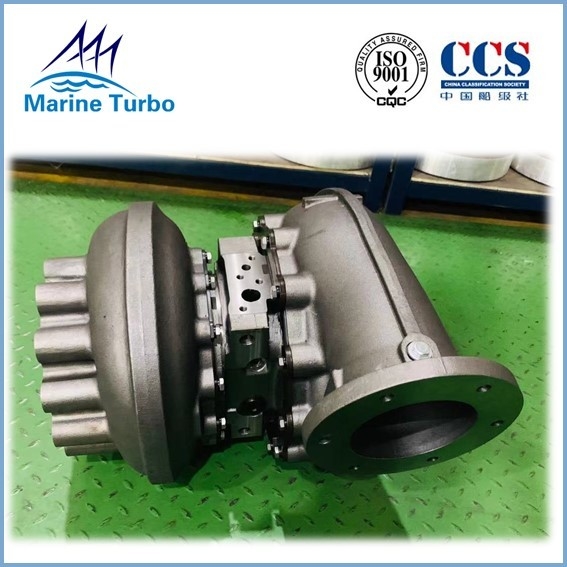

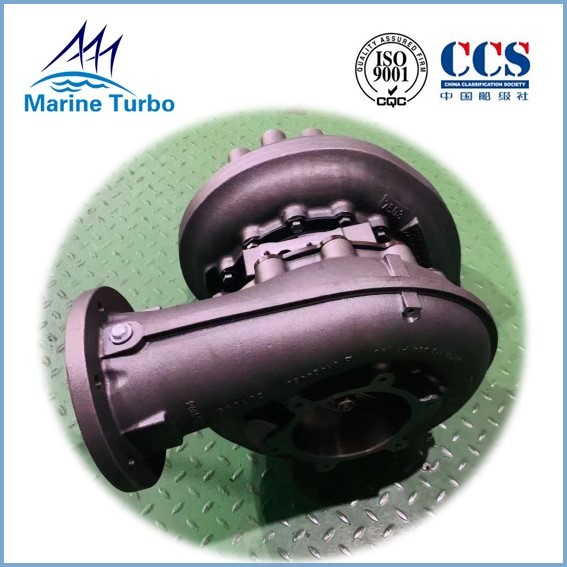

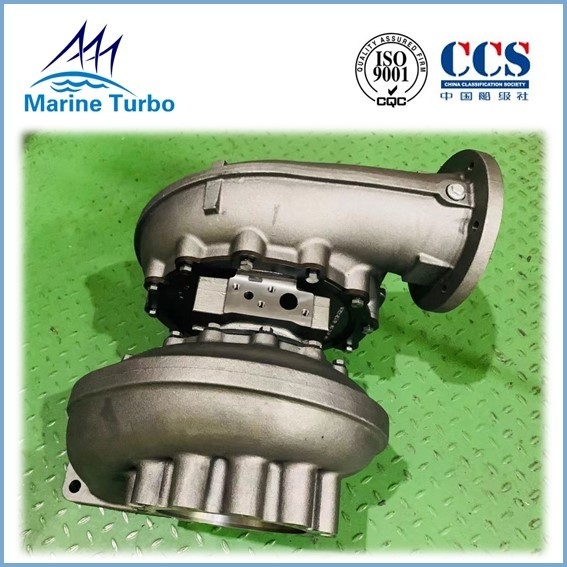

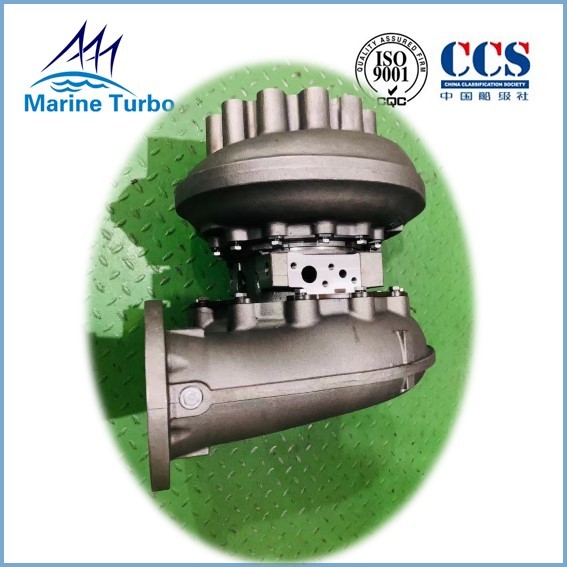

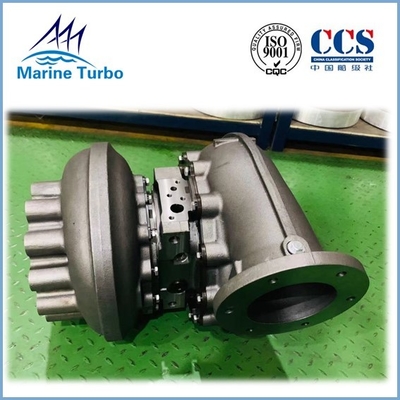

The marine turbocharger complete, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
