ABB Complete Turbocharger For Marine Diesel Turbo Charger Engines

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO
Model Number: RR181
Minimum Order Quantity: 1 pcs
Packaging Details: Wood case or according to customer's requirement
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets / month
Detail Information
Model: RR181 Product Name: Complete Turbocharger, Marine Turbocharger Complete
Size: Standard Size Type: ABB Diesel Engine Turbocharger
Engine Type: High-speed Diesel Engine And Fuel Gas Engine Turbine Type: Mixed-flow Turbine
Compressor Type: Radial Compressor Pressure Ratio: 3.5
Power Range: 500 - 1,800 KW Fuel Consumption: Lower Engine Fuel Consumption
Quality: High-output, High Efficiency, Lower Engine Fuel Consumption, Guaranteed Warranty: 12 Months
High Light:

Marine Complete Turbocharger

,

Radial Compressor Marine Turbocharger

,

Charger Engines Marine Turbocharger


Product Description

ABB / RR181 Turbocharger Complete For Marine Diesel Turbo Charger Engines

ABB / RR Marine turbocharger complete features:

  • High - output range from 500 kW to 1800 kW per turbocharger;
  • Compressor pressure ratios: up to 3.5;
  • High efficiency and small size;
  • Lower fuel consumption
  • The RR series turbocharger is equipped with pressure lubricated internal bearings, externally mounted "mixed flow" turbines and radial compressors;
  • The RR series turbochargers are lubricated via the oil systme of the engine using standard oil filters;
  • The RR series turbochargers are used on high-speed diesel engines and on gas engines.

ABB / RR complete turbocharger dimension and weight only for reference:

 ABB RR Series A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) I(mm) Weight (kg)*
RR131 210 375.5 326.5 314 106 130 182 121 141 64
RR151 232.5 432.5 371.5 362 121 139.5 210 140 161.5 103
RR181 284.5 527.5 488 443 148 170.5 258 170.5 197.5 184
RR221 348.5 642 585.5 542 181 209 314 255 241.5 334

Note: *without filter silencer/suction branch and without cooling water.

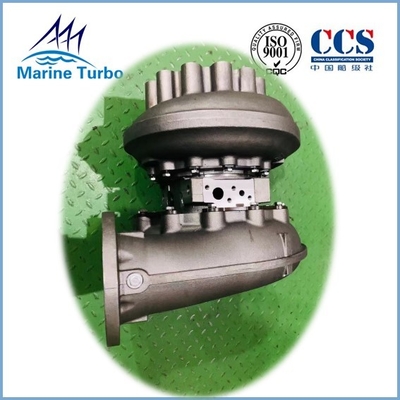

ABB Complete Turbocharger For Marine Diesel Turbo Charger Engines 0

More pictures for ABB / RR181 Turbocharger Complete:

ABB Complete Turbocharger For Marine Diesel Turbo Charger Engines 1

ABB Complete Turbocharger For Marine Diesel Turbo Charger Engines 2

ABB Complete Turbocharger For Marine Diesel Turbo Charger Engines 3

Brief introduction of Marine turbocharger:

The marine turbocharger complete, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
