T- TPS44 Turbo Nozzle Ring For Marine Diesel Engine Turbocharger Replacement Parts

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO
Model Number: T- TPS44 Series
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 2-3 working days
Payment Terms: T/T
Supply Ability: 200 pcs / month
Detail Information
Model: T- TPS44 Turbo Nozzle Ring Size: Standard Size, Or As Customer's Request
Type: Exhaust Gas Turbocharger Parts Engine Type: Diesel
Lubrication: External Engine Lubricating Oil System Quality: High Performance, Top And High Level, Guaranteed
High Light:

turbo nozzle ring

,

turbine diffuser

,

Diesel Engine Turbo Nozzle Ring


Product Description

T- TPS44 Turbo Nozzle Ring For Marine Diesel Engine Turbocharger Replacement Parts

T- TPS series turbocharger design features:

T- TPS44 Turbocharger Nozzle Ring belongs to one part of T- TPS series marine turbocharger with features as following:
  1. It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
  2. it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
  3. cooled & uncooled bearing casing design.
  4. The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
  5. The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
  6. The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
  7. It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

T- TPS turbocharger types:

MARINE TURBO T- TPS Series
T- TPS44
T- TPS48
T- TPS52
T- TPS57
T- TPS61

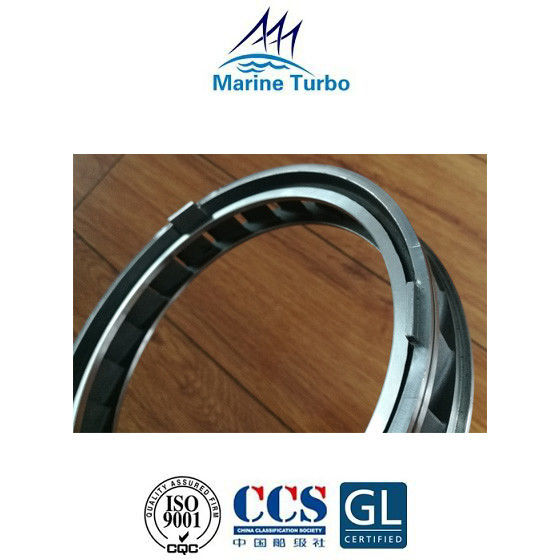

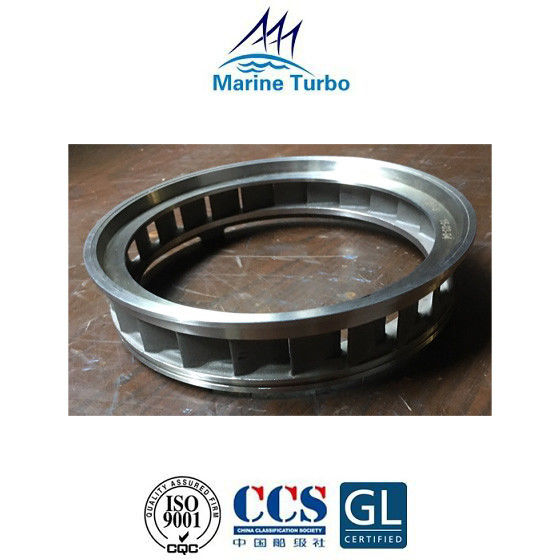

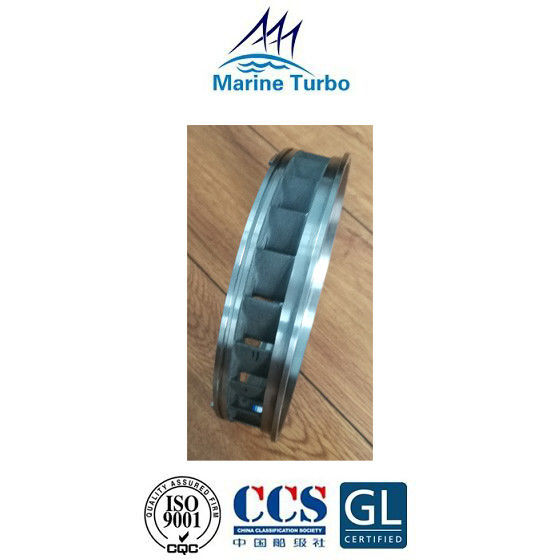

T- TPS44 Turbocharger Nozzle Ring pictures:

T- TPS44 Turbo Nozzle Ring For Marine Diesel Engine Turbocharger Replacement Parts 0T- TPS44 Turbo Nozzle Ring For Marine Diesel Engine Turbocharger Replacement Parts 1

Brief description of turbocharger nozzle ring:

T- TPS44 Turbocharger Nozzle Ring is in the where the energy in the exhaust gas is converted into kinetic energy, so the nozzle ring need to bear the extremely high temperature and high pressure.The turbocharger nozzle ring is usually fabricated from a creep resistant chromium nickel alloy, heat resisting moly-chrome nickel steel or a nimonic alloy which will withstand the high temperatures and be resistant to corrosion.Furthermore, due to its function is to convert the exhaust gas into kinetic energy, the precision processing of the nozzle ring is highly demanded.
