T- MET53SE Turbo Seal Sealing Bush Oil Sealing For Marine Turbocharger

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS; GL
Model Number: T- MET53SE, T- MET Series
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-2 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detail Information
Model: T- MET53SE Product Name: Turbocharger Seals, Marine Turbocharger Sealing Bush
Size: Standard Size, Or As Customer's Request Type: Exhaust Gas Turbocharger
Fuel: Diesel Engine Type: Diesel Engine
Turbine: Axial Type Pressure Ratio: Up To 4.0
Power Output: 1,300-24,000 KW Turbocharging Efficiency: Up To 70%
Quality: High Performance, High Turbocharging Efficiency, Guaranteed Certification: ISO9001, CCS, Or GL
Warranty: 12 Months Application: Large Ships And Stationary Diesel Engines
Package: Wood Case, Carton Box Or According To Require
High Light:

turbo seal

,

turbo oil seal


Product Description

T- MET53SE Turbo Seal Sealing Bush Oil Sealing For Marine Turbocharger



T- Mitsubishi / T- MET series turbocharger features:

T- MET53SE turbocharger seals / sealing bush belongs to one part of T- Mitsubishi / T- MET-SE series turbocharger, which is widely used in marine and stationary engines.  The T- MET-SE series turbocharger is axial type of turbine with relatively high pressure turbocharging suitable for the large engine with output range from 1,300 to 24,000kW per turbocharger.

  • Compressor pressure ratios, up to 4.0;

  • High turbocharging efficiency up to 70%;

  • Bearing on the inner side of the impeller;

  • Rotor support is not affected by thermal expansion of the turbine casing;

  • Bearing pedestal has an interated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;

  • The gas inlet casing is double wall structure, which make it easy to check the turbine and nozzle;

  • The T- MET Series turbochargers is kind of advanced aerodynamic design;

  • Long service lifetime and high reliability;

  • Low noise silencer is applied to the T- MET Series turbochargers;

  • Applied to all major engines in marine and stationary field.

T- Mitsubishi / T- MET-SE series includes:

T- MET T- SE Series
T- MET33SE
T- MET42SE
T- MET53SE
T- MET66SE
T- MET71SE
T- MET83SE
T- MET90SE

T- Mitsubishi / T- MET series includes:

T- MET Original and ..0 Series T-S, -SA Series T-SB,SBII Series T-SC Series T-SD Series T-SE Series T-SEII Series
T-MET35 T-MET35S/SA T-MET33SB/SBII T-MET33SC T-MET33SD T-MET33SE T-MET33SEII
T-MET350 T-MET45S/SA T-MET42SB/SBII T-MET42SC T-MET42SD T-MET42SE T-MET42SEII
T-MET45 T-MET56S/SA T-MET53SB T-MET53SC T-MET53SD T-MET53SE T-MET53SEII
T-MET450   T-MET66SB T-MET66SC T-MET66SD T-MET66SE T-MET66SEII
T-MET56     T-MET83SC   T-MET71SE T-MET71SEII
T-MET560         T-MET83SE T-MET83SEII
          T-MET90SE

T-MA Series T-MB Series T-MBII Series T-SR Series T-SRII Series T-SRC Series T-ER Series
T-MET33MA T-MET33MB T-MET33MBII T-MET22SR T-MET22SRII T-MET18SRC T-MET13ER
T-MET42MA T-MET37MB T-MET37MBII T-MET26SR T-MET26SRII T-MET22SRC T-MET16ER
T-MET53MA T-MET42MB T-MET42MBII T-MET30SR T-MET30SRII T-MET26SRC T-MET20ER
T-MET60MA T-MET48MB T-MET48MBII     T-MET30SRC T-MET24ER
T-MET66MA T-MET53MB T-MET53MBII     T-MET37SRC T-MET28ER
T-MET71MA T-MET60MB T-MET60MBII       T-MET34ER
T-MET83MA T-MET66MB T-MET66MBII
T-MET90MA T-MET71MB T-MET71MBII
  T-MET83MB T-MET83MBII
  T-MET90MB T-MET90MBII

T- Mitsubishi / T- MET series turbocharger power output range:

T- MET53SE Turbo Seal Sealing Bush Oil Sealing For Marine Turbocharger 0

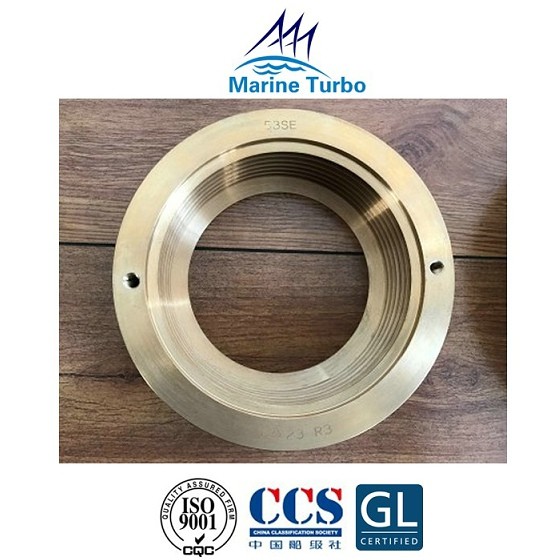

The Picture of T- MET53SE sealing bush for marine turbocharger seals:

 T- MET53SE Turbo Seal Sealing Bush Oil Sealing For Marine Turbocharger 1T- MET53SE Turbo Seal Sealing Bush Oil Sealing For Marine Turbocharger 2T- MET53SE Turbo Seal Sealing Bush Oil Sealing For Marine Turbocharger 3

The function of turbocharger seals:

The sealing devices of the exhaust gas turbocharger is divided into two types: gas seal and oil seal.

The function of the gas seal is to prevent leakage of compressed air at the compressor end and gas exhaust gas at the turbine end. A large amount of leakage of compressed air at the compressor end will reduce the boosting efficiency; leakage of the exhaust gas at the turbine end will cause the turbine power to drop, and high temperature gas leaking into the bearing housing will contaminate the lubricating oil and damage the bearing.

The function of the oil seal is to prevent leakage of lubricating oil in the booster bearing housing. Leakage of lubricating oil not only increases its consumption and affects bearing lubrication, but also causes the temperature of the gas to rise and even burn the turbine blades due to leakage of oil into the turbine inlet casing.

Therefore, a good sealing device is an indispensable part of the normal and reliable operation of the exhaust gas turbocharger.

The sealing device is divided into three types according to the structure: contact type, piston ring type and labyrinth type. Piston ring seals are commonly used in small boosters as an oil seal. There are many types of labyrinth seals, axial and radial labyrinth seal for the turbocharger used as a gas seal. The smaller the gap between the gas seal sheets, the better the sealing effect. When a pressurized air is introduced from the compressor end to the gas seal, the sealing effect is enhanced.
