T- Turbocharger / T- TCR12 Turbo Cartridge For Marine Propulsion

T-  Turbocharger / T-TCR12 Turbo Cartridge For Marine Propulsion

T-/T-TCR series turbocharger:

Turbocharger Cartridge Type T- TCR12 belongs to T- / T- TCR series turbochargers, which were created to address the very special challenges faced by Heavy Fuel Oil, Marine Diesel Oil, biofuel and gas engines. Products are available for the entire engine power range, from 350 kW to 7MW per turbocharger. T- / T- TCR turbochargers are IMO Tier III compliant, and represent a robust, versatile modular platform– suitable for a wide variety of high-, medium- and low-speed engine applications.

• Engine outputs from 350 kW to 7M;
• Radial flow design;
• Increased efficiency due to improved compressor wheel and turbine design;
• Constant and pulse pressure turbocharging;
• Low moment of inertia for best dynamic behavior;
• New compressor wheel fixation for easy servicing;
• Un-cooled casings;
• Pipe-less design with integrated oil inlet and oil drain;
• No sealing air required;

Applications

Marine propulsion, excavators, locomotives, power generation, off-road vehicles, machanical drive, mining, marine gensets.

T- TCR Models includes:

The composing of T- TCR12 turbocharger cartridge:

The T- TCR12 turbocharger cartridge is composed by rotor complete and bearing Assembly.

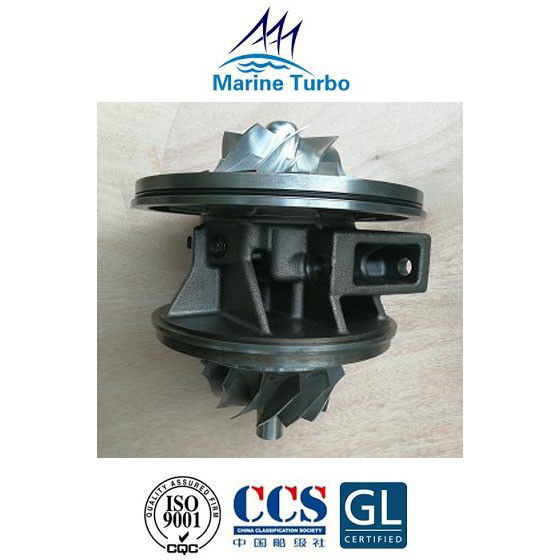

T- TCR12 series marine turbocharger cartridge pictures:
