| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS |
| Model Number: | TCR14 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case or according to client's request. |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 pcs / month |

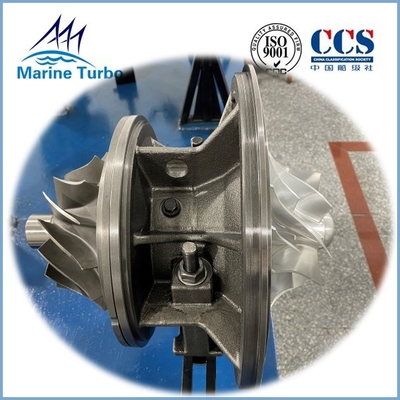

| Model: | TCR14 | Product Name: | Turbo Cartridge, Turbo Charger Cartridge |
|---|---|---|---|
| Type: | MAN Turbocharger | Fuel: | Heavy Fuel Oil, Marine Diesel Oil, Biofuel And Gas Engines |
| Turbine Type: | Radial Flow | Supercharging: | Two-stroke And Four-stroke |
| Four Stroke: | T- TCR10, T- TCR12, T- TCR14, T- TCR16 | Quality: | Balancing Test,High Qualuty |
| Package: | Wooden Case | ||
| High Light: | Cartridge Turbocharger Spare Parts,MAN Turbo Cartridge Replacement,Radial Flow Turbo Cartridge Replacement |
||
| T- MAN | T- TCR Series | L (mm) | H (mm) | W (mm) | Weight (kg) |
| T- TCR10 | 860 | 410 | 327 | 48 | |
| T- TCR12 | 889 | 496 | 401 | 78 | |
| T- TCR14 | 950 | 623 | 534 | 108 | |
| T- TCR16 | 1,091 | 658 | 590 | 175 | |
| T- TCR18 | 1,311 | 870 | 730 | 306 | |
| T- TCR20 | 1,662 | 970 | 852 | 504 | |
| T- TCR22 | 1,990 | 1,320 | 1,068 | 1,044 |
Q1. What is the origin of country?
A: The spare parts are made by our factory in China.
Q2. How can I order it?
A: Before you issue the order, please send the nameplate and IMO to us for checking. Then we'll make the quote for you before you send the PO to us.
Q3. Can you supply other type of spare parts for TCR Series?
A: Yes, we also can supply the spare parts replacement for TCR12, TCR14, TCR16, TCR18, TCR22.
Q4. What is the warranty?
12 months for fixed parts;
6 months for rotary parts.
Q5. How many years of manufacturing experience have you had on marine turbocharger field?
A: More than 20 years. Our factory was established in 1999.
