| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS |
| Model Number: | AT 14 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 300 pcs / month |
| Model: | AT 14 | Type: | Turbocharger,Diesel Engine Turbocharger |
|---|---|---|---|
| Size: | Standard Size, Or As Customer's Request | Fuel: | Diesel And Heavy Duty Fuel Oil |
| Engine Power Range: | 320 -750 KW | Cooling Method: | Water-cooled Bearing Casing |
| Running Hour: | Max. 8,000h | Quality: | High Performance,High Level,Top,Guaranteed |
| Application: | Automotive, Heavy Truck, Construction, Marine And Industrial Engine | ||
| High Light: | IHI AT14 Marine Turbocharger,Black Filter Diesel Engine Marine Turbocharger,IHI AT14 Marine Diesel Engine Turbocharger |
||

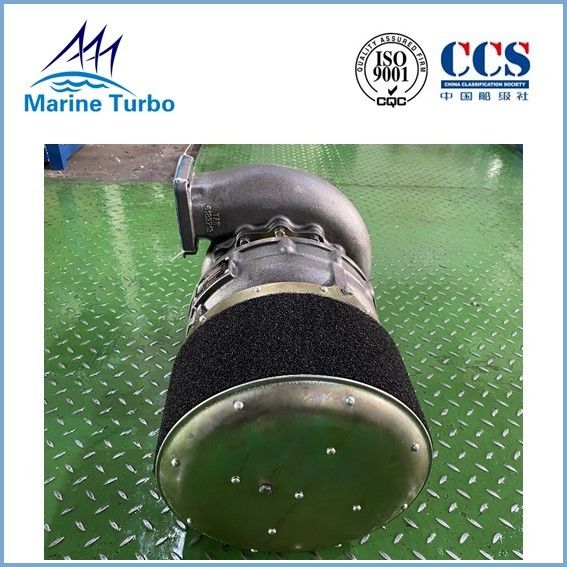

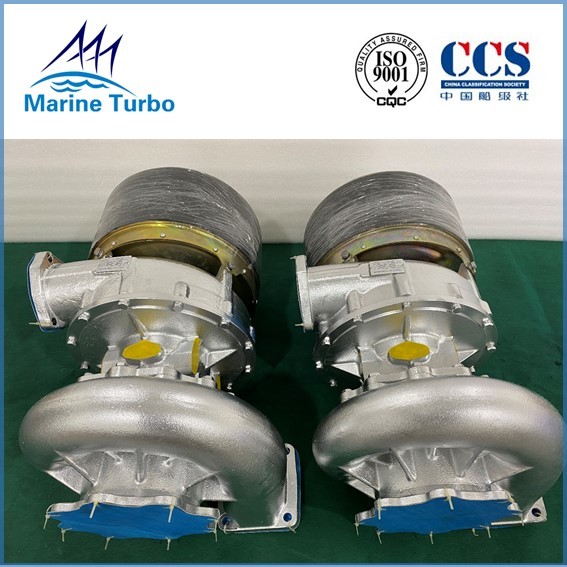

IHI AT 14 marine diesel turbocharger with silencer includes the design features as below:
The above T- AT14 Turbocharger's cross-sectional drawing shows that the T- AT14 turbocharger is consisted of the turbine and compressor, and the thrust bearing and two journal bearings which make the axial and radial forces respectively becoming possible. From static section view, T-AT14 turbocharger consists of the comprssor casing, bearing casing and turbine casing.
| RH Series | AT Series | RU Series | |
| IHI | RH133 | AT14 | RU110 |
| RH143 | RU120 | ||
| RH163 | |||
| RH183 | |||
| RH203 |
The exhaust gas turbocharger is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the exhaust gas turbocharger - the rotor. The function of the exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved.
When the diesel-exhaust turbocharger combination is in operation, the exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
Marine Turbo has been specialized in turbocharger spare parts replacement in Marine industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium product quality and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for MAN, ABB, KBB, MET, IHI and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance and repair needs for various brands with a quick response and a reasonable price.
