| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | T- MET18SRC |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1-2 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 pcs / month |
| Model: | T- MET18SRC | Size: | Standard Size, Or As Customer's Request |
|---|---|---|---|
| Type: | Diesel Engine Turbocharger | Fuel: | Diesel |
| Turbine: | Radial Type | Pressure Ratio: | Up To 5.5 |
| Quality: | High Performance, High Turbocharging Efficiency, Guaranteed | Application: | Large Ships And Stationary Diesel Engines |
| Package: | Wood Case, Carton Box Or According To Require | ||
| High Light: | turbo turbocharger,marine engine turbocharger,High Performance Marine Turbocharger |
||
T-MET18SRC Marine turbocharger complete belongs to T-Mistubishi / T-MET-SRC series of exhaust gas turbocharger with the features that,
T-MET-SRC Series turbocharger's types, engine output, pressure ratio and dimension:
| T-MET | T-SRC Series | Engine Output (kW)* | Max. Pressure Ratio | L (mm) | W (mm) | H (mm) |
| T-MET18SRC | 400-1,100 | 5.5 | 712 | 510 | 510 | |
| T-MET22SRC | 650-1,600 | 5.5 | 835 | 605 | 605 | |
| T-MET26SRC | 850-2,200 | 5.5 | 1,075 | 735 | 735 | |
| T-MET30SRC | 1,150-3,300 | 5.5 | 1,368 | 860 | 860 | |
| T-MET37SRC | 2,200-4,400 | 5.5 | 1,661 | 1,070 | 1,070 |
Note: *Engine Output Range is for reference subject to pressure ratio 3.5.
T-MET series includes:
| T-MET | Original and ..0 Series | T-S, -SA Series | T-SB,SBII Series | T-SC Series | T-SD Series | T-SE Series | T-SEII Series |
| T-MET35 | T-MET35S/SA | T-MET33SB/SBII | T-MET33SC | T-MET33SD | T-MET33SE | T-MET33SEII | |
| T-MET350 | T-MET45S/SA | T-MET42SB/SBII | T-MET42SC | T-MET42SD | T-MET42SE | T-MET42SEII | |
| T-MET45 | T-MET56S/SA | T-MET53SB | T-MET53SC | T-MET53SD | T-MET53SE | T-MET53SEII | |
| T-MET450 | T-MET66SB | T-MET66SC | T-MET66SD | T-MET66SE | T-MET66SEII | ||
| T-MET56 | T-MET83SC | T-MET71SE | T-MET71SEII | ||||
| T-MET560 | T-MET83SE | T-MET83SEII | |||||
| T-MET90SE | |||||||
| T-MA Series | T-MB Series | T-MBII Series | T-SR Series | T-SRII Series | T-SRC Series | T-ER Series | |
| T-MET33MA | T-MET33MB | T-MET33MBII | T-MET22SR | T-MET22SRII | T-MET18SRC | T-MET13ER | |
| T-MET42MA | T-MET37MB | T-MET37MBII | T-MET26SR | T-MET26SRII | T-MET22SRC | T-MET16ER | |
| T-MET53MA | T-MET42MB | T-MET42MBII | T-MET30SR | T-MET30SRII | T-MET26SRC | T-MET20ER | |
| T-MET60MA | T-MET48MB | T-MET48MBII | T-MET30SRC | T-MET24ER | |||
| T-MET66MA | T-MET53MB | T-MET53MBII | T-MET37SRC | T-MET28ER | |||
| T-MET71MA | T-MET60MB | T-MET60MBII | T-MET34ER | ||||
| T-MET83MA | T-MET66MB | T-MET66MBII | |||||
| T-MET90MA | T-MET71MB | T-MET71MBII | |||||
| T-MET83MB | T-MET83MBII | ||||||
| T-MET90MB | T-MET90MBII |
T-MET Series turbocharger power output range:

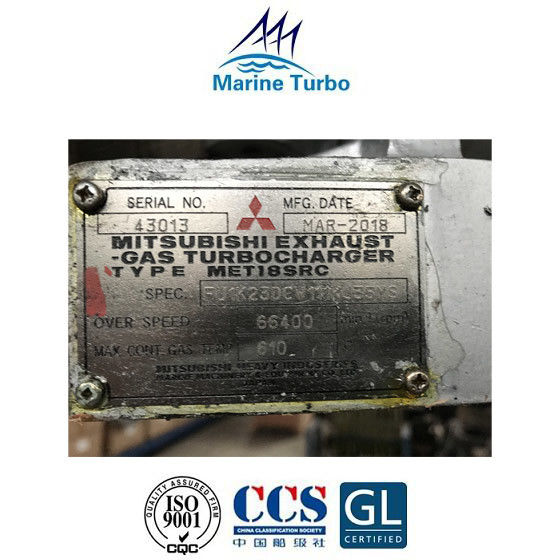

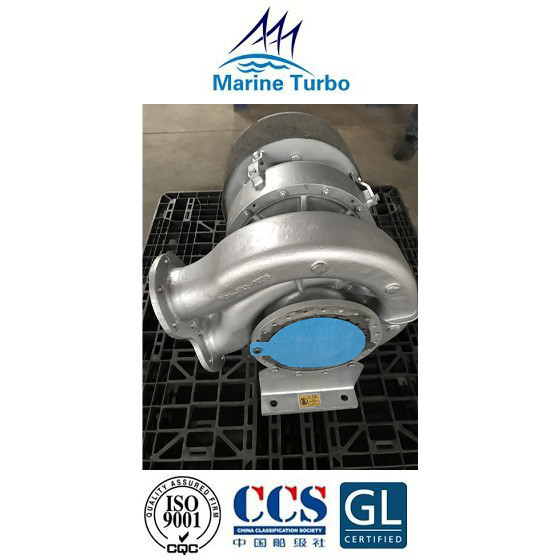

T-MET18SRC marine turbocharger complete (second-hand original) pictures:
The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
