T- MAN / T- NR15/R Power And Industrial Marine Engine Turbocharger Without Silencer

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS; GL
Model Number: T- NR15/R
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detail Information
Model: T- NR15/R Type: T-MAN Exhaust Gas Turbocharger
New Or Second Hand: New Marine Turbocharger Replacement Engine Type: Diesel, Biofuel And Gas Engines
Engine Power Range: 450kW - 5400kW Turbine Type: Radial Flow
Permiss. Temp.: Max. 650°C Quality: High Performance, Top And High Level, Guaranteed
Certification: ISO9001, CCS, Or GL Warranty: 12 Months
Package: Wood Case, Carton Box Or According To Require
High Light:

turbo turbocharger


marine engine turbocharger


No Silencer Marine Turbocharger

Product Description

T- MAN / T- NR15/R Power And Industrial Marine Engine Turbocharger Without Silencer

T- MAN/T- NR series marine turbocharger's design features:

T-NR15/R marine turbocharger complete belongs to T-MAN/T-NR series supercharger,  is a radial-flow turbocharger which consists of single-stage radial-flow turbine and centrifugal compressor. T-NR turbochargers adopts inboard plain bearing, uncooled casings and lubricated by the engine's lube oil system.

  • Max. of the compressor pressure ratio about 4.5;
  • Suitable for a wide variety of fuels:heavy fuel, diesel oil, biofuel and gas
  • Simple and durable design;
  • Easy maintenance;
  • Long service life;
  • widely used in ship building, locomotive, land power station and petroleum drilling industries.

T- MAN / T- NR series Marine turbocharger dimension and weight only for reference:

Type L(mm) W(mm) H(mm) Weight (kg)
T-NR12/S 858 402 432 155
T-NR15/R 715-724 500-520 525-672 200
T-NR20/R 900-960 662-692 700-730 400
T-NR20/S 1,165 715 678 350
T-NR24/S 1470 748 838 505

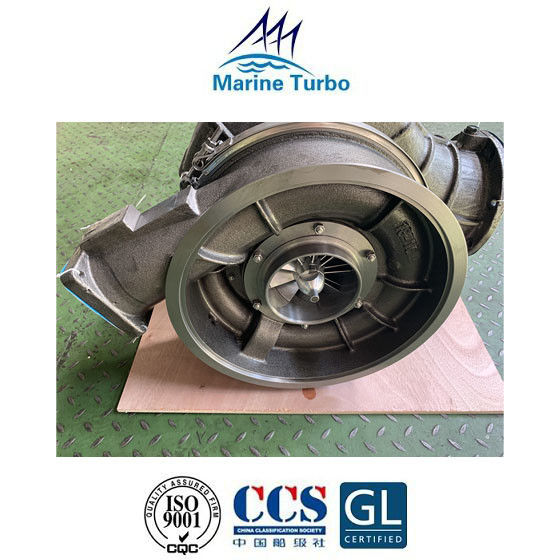

T- NR15/R marine turbocharger complete (without silencer) pictures:

T- MAN / T- NR15/R Power And Industrial Marine Engine Turbocharger Without Silencer 0T- MAN / T- NR15/R Power And Industrial Marine Engine Turbocharger Without Silencer 1

Brief introduction of Marine turbocharger:

Marine turbocharger/Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.

When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
