| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | T- RH183 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 pcs / month |
| Model: | T- RH183 | Product Name: | Marine Turbocharger, Marine Turbocharger Complete, T/C Complete, Turbocharger Assembly |
|---|---|---|---|
| New Or Second-Hand: | Second-Hand Original Marine Turbocharger | Type: | T- IHI Marine Turbocharger |
| Size: | Standard Size, Or As Customer's Request | Fuel: | Diesel |
| Turbine Type: | Single-stage Mixed-flow Turbine | Pressure Ratio: | 3.6 |
| Certification: | ISO9001, CCS, Or GL | Application: | Marine Engine, Automotive, Heavy Truck, Construction And Industrial Engines |
| High Light: | turbo turbocharger,ship engine turbocharger,Original Marine Turbocharger |
||

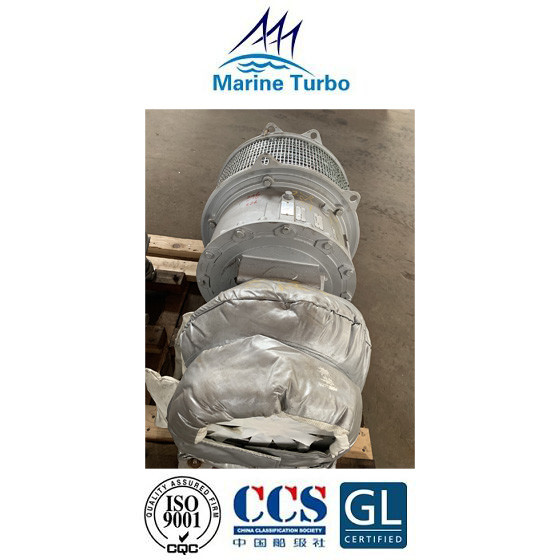

T- RH183 Marine Turbocharger belongs to T- IHI / T- RH series exhaust gas turbocharger, that consists of mixed flow turbine and radial flow compressor. This series of turbocharger can match to high-speed diesel engine. Two types of journal bearing: semi-floating type and full-floating type, in order to prevent the shaft to move. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. Excellent thermal resistance, air and oil sealing performance and stable bearing system ensure the T- IHI / T- RH Series marine turbochargers' reliability and long service lifetime.T- RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.
| T- RH Series | T- AT Series | T- RU Series | |
| T- IHI | T- RH133 | T- AT14 | T- RU110 |
| T- RH143 | T- RU120 | ||
| T- RH163 | |||
| T- RH183 | |||
| T- RH203 |
| Model | Overall Dimension(mm) | Weight | ||||
| A | B | C | D | E | Kg | |
| T- RH133 | 765 | 405 | 284 | 323 | 393 | 54 |
| T- RH143 | 908 | 456 | 316 | 361 | 458 | 146 |
| T- RH163 | 981 | 537 | 362 | 426 | 533 | 159 |
| T- RH183 | 1188 | 655 | 443 | 518 | 656 | 289 |
The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
