Mitsubishi Turbocharger Bolted Type MET26SR Casing Bearing Housing

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS
Model Number: MET26SR
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 2-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detail Information
Model: MET26SR Part No.: P/N 30
Turbo Type: Mitsubishi Diesel Engine Turbocharger Engine Type: Diesel Engine
Turbine: Radial Type Warranty: 12 Months
Application: Large Ships And Stationary Diesel Engines
High Light:

MET26SR Casing Bearing Housing

,

Mitsubishi Turbocharger Casing Bearing Housing

,

Bolted Type Mitsubishi Turbocharger Casing


Product Description

Bolted type MET26SR bearing housing casted for Mitsubishi turbocharger components



Features of Mitsubishi / MET - SR series turbocharger:

  • Since the 1965 until now, MET Series exhaust gas turbochargers has developed many series to meet the market demands, it includes the Axial type and Radial type of turbochargers:
MET turbocharger Axial Type Radial Type
Original and ..0 Series S, SA Series SB,SBII Series SR, SRII Series
SC,SD Series SE Series SEII Series SRC Series
MA Series MB Series MBII Series ER Series
  • The bearing is designed on the inner side of the impeller and turbine blade;
  • The Rotor is supported by a pedestal with less thermal deformation;
  • Bearing pedestal has an interated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;
  • The gas inlet casing is double wall structure, which make it easy to check the turbine and nozzle when doing the maintenance;
  • An advanced aerodynamic design for compressor and turbine is adopted in T-MET Series turbochargers;
  • Simple and compact design of T-MET Series turbocharger make it long service lifetime and high reliability;



Types of Mitsubishi / MET-SR Series turbochargers:

MET-SR Series
MET22SR
MET26SR
MET30SR



Description of Bolted type MET26SR bearing housing:

The turbine casing, bearing casing and compressor housing are made by cast iron. Some casings are water cooled which complicates the casting. Water cooled casings are necessary for turbochargers with ball and roller bearings with their own integral LO supply (to keep the LO cool). Modern turbochargers with externally lubricated journal bearings have uncooled casings. This leads to greater overall efficiency as less heat energy is rejected to cooling water and is available for the exhaust gas boiler.



More picture for Bolted type MET26SR bearing housing casted for Mitsubishi turbocharger components:

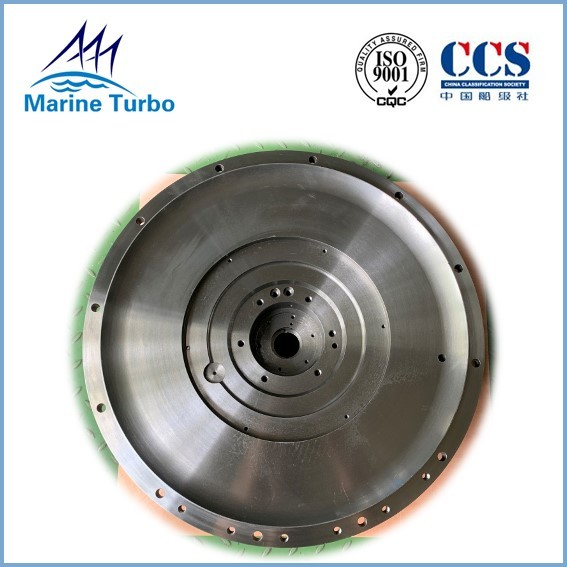

Mitsubishi Turbocharger Bolted Type MET26SR Casing Bearing Housing 0

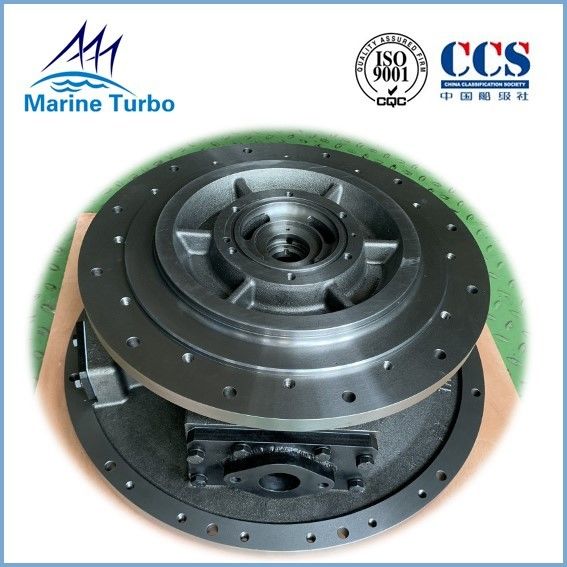

Mitsubishi Turbocharger Bolted Type MET26SR Casing Bearing Housing 1

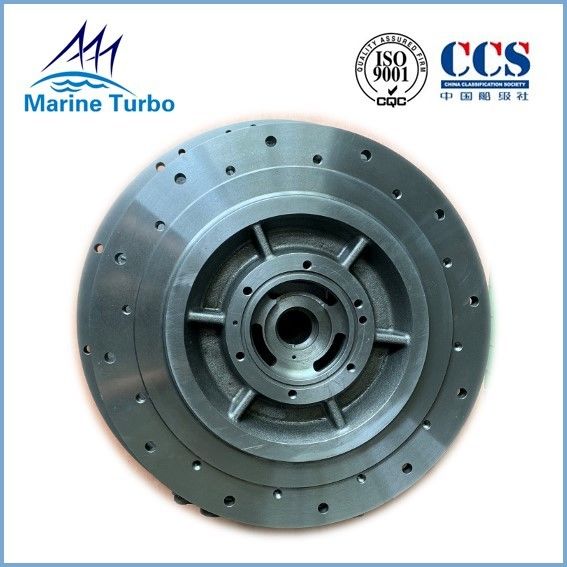

Mitsubishi Turbocharger Bolted Type MET26SR Casing Bearing Housing 2

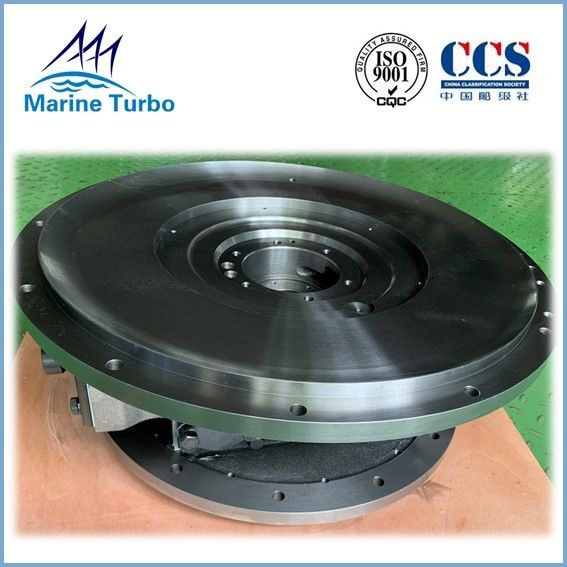

Mitsubishi Turbocharger Bolted Type MET26SR Casing Bearing Housing 3



Applications of marine turbocharger replacement parts:

Marine Turbo's turbocharger replacement parts help to power all types of ships, large and small, including container ships, tankers, cargo vessels, cruise ships, tugboats, etc., and also drilling diesel engine, mining machinery with diesel engine.
