| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | T- RH183 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 pcs / month |
| Model: | T- RH183 | Product Name: | Marine Turbocharger Silencer / Filter Silencer / Whispering Silencer / Air Outlet Silencer |
|---|---|---|---|
| Size: | Standard Size, Or As Customer's Request | Type: | T- IHI Marine Turbocharger |
| Fuel: | Diesel | Turbine Type: | Single Stage Turbine |
| Certification: | ISO9001, CCS, Or GL | Application: | Marine Engine, Drilling And Mining Industry, Generator, Construction/mining/agriculture Machinery |
| High Light: | marine turbocharger silencer,marine turbo kits,Whispering Silencer Marine Turbocharger Parts |
||

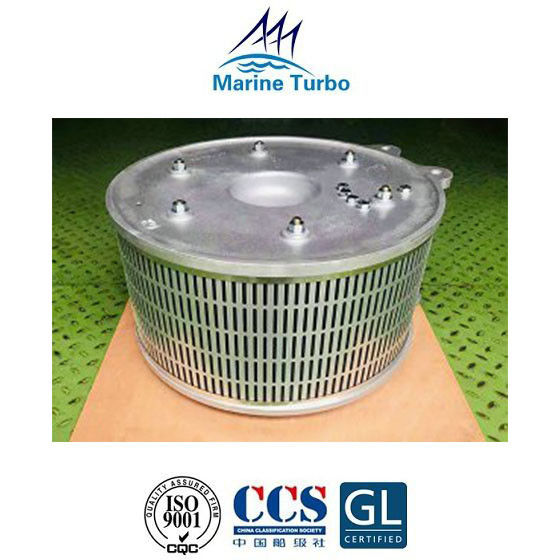

T- RH183 whispering silencer belongs to one part of IHI / T- RH series turbocharger consists of single stage turbine and centrifugal compressor. This series of turbocharger can be used to match high-speed diesel engine power 300-110kw. Inboard plain bearing is lubricated by the engine oil system. The blade wheel of the compressor adopts the back bend and tilt Angle. The overall efficiency of T/C is 60%-62%, with the maximum pressure ratio of 3.6. IHI/T- RH series turbochargers widely used in Marine generator, drilling and mining field.
| Model | Overall Dimension(mm) | Weight | ||||
| A | B | C | D | E | Kg | |
| T- RH133 | 765 | 405 | 284 | 323 | 393 | 54 |
| T- RH143 | 908 | 456 | 316 | 361 | 458 | 146 |
| T- RH163 | 981 | 537 | 362 | 426 | 533 | 159 |
| T- RH183 | 1188 | 655 | 443 | 518 | 656 | 289 |
As all knew, turbochargers have been extensively used in diesel engines to improve their performance. However, due to their operation at high speeds, turbochargers are susceptible to noise generation such as whine (narrow band) and whoosh (broadband). While unbalanced blades contribute to the former, the latter is due to turbulence. Such noise can be radiated from the structure, especially from the duct segment between the compressor and intercooler. The characteristics of turbocharger noise have been addressed that the compressor outlet was a major contributor to the overall intake system noise and experimentally demonstrated the effectiveness of a thicker wall and a resonator to reduce turbocharger noise that is a silencer could reduce both whine and broadband noise. (Reference from article "Design of a Multi-Chamber Silencer for Turbocharger Noise" by I. J. Lee, A. Selamet and H. Kim)
