T- TPS44, T- TPS48, T- TPS52 And T- TPS61 Turbo Pressing-On Tools F Type

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO
Model Number: T- TPS Series
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-4 working days
Payment Terms: T/T
Supply Ability: 1000 pcs / month
Detail Information
Model: T- TPS44/48/52/61 Turbocharger Tools Part No.: PN90245
Size: Standard Size, Or As Customer's Request Type: Exhaust Gas Turbocharger Parts
Fuel: Diesel Turbine Type: Single Stage Mixed-flow Turbine
High Light:

marine turbocharger kits


turbo spare parts


T- ABB Turbocharger Tools

Product Description

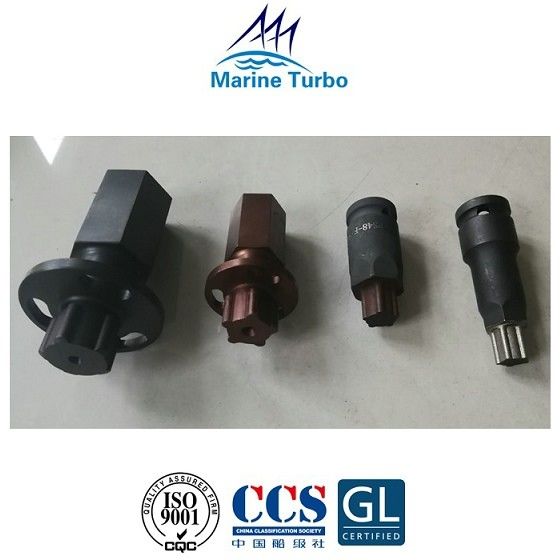

T- TPS44, T- TPS48, T- TPS52 And T- TPS61 Turbo Pressing-On Tools F Type

T- TPS series exhaust gas turbocharger description:

  • T- TPS44/48/52/61 turbocharger pressing-on tools are used for T- TPS series exhaust gas turbocharger.
  • T- TPS series marine turbocharger is a mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, and adopts inboard support semi-floating sliding bearing and external lube oil system.
  • Single stage of marine turbocharger can meet the requirement of 500kw~3000kw high speed diesel engine.
  • T- TPS series marine turbochargers are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines due to T- TPS series turbocharger has the advantages, such as simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability.

T- TPS series turbochargers  weight only for reference:

Type Weight(Kg)
T- TPS48 115
T- TPS52 166
T- TPS57 266
T- TPS61 458

Brief introduction of Marine turbocharger:

The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
