T- MAN Turbocharger / T- TCR12 Turbine Housing For Mining, Marine Propulsion And Gensets Engines

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS; GL
Model Number: T- TCR12
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detail Information
Model: T- TCR12 Product Name: Turbocharger Housing, Turbine Casing, Gas Admission Casing, Turbocharger Turbine Housing
Type: Diesel Engine Turbocharger Fuel: Heavy Fuel Oil, Marine Diesel Oil, Biofuel And Gas Engines
Engine Type: Diesel, Biofuel And Gas Engines Turbine Type: Radial Flow
Four Stroke: T- TCR10, T- TCR12, T- TCR14, T- TCR16
High Light:

turbo casing

,

turbine housing

,

Turbine Housing For Mining


Product Description

T- MAN Turbocharger / T- TCR12 Turbine Housing For Marine Propulsion And Gensets Engines

T- MAN / T- TCR series turbocharger features:

T- TCR12 Turbine housing of Turbocharger Casing is one part of T- MAN / T- TCR series turbocharger. T- MAN / T- TCR series turbochargers were created to address the very special challenges faced by Heavy Fuel Oil, Marine Diesel Oil, biofuel and gas engines. Products are available for the entire engine power range, from 350 kW to 7MW per turbocharger. T- MAN / T- TCR turbochargers are IMO Tier III compliant, and represent a robust, versatile modular platform– suitable for a wide variety of high-, medium- and low-speed engine applications.

  • Increase of the compressor pressure ratio
  • High efficiency
  • Low noise emissions
  • Simple installation to the engine
  • Easy maintenance
  • Long service life
  • wide application: Marine propulsion, excavators, locomotives, power generation, off-road vehicles, machanical drive, mining, marine gensets.

Applications

Marine propulsion, excavators, locomotives, power generation, off-road vehicles, machanical drive, mining, marine gensets.

T- TCR series Marine turbocharger dimension and weight only for reference:

T- MAN T- TCR Series L (mm) H (mm) W (mm) Weight (kg)
T- TCR10 860 410 327 48
T- TCR12 889 496 401 78
T- TCR14 950 623 534 108
T- TCR16 1,091 658 590 175
T- TCR18 1,311 870 730 306
T- TCR20 1,662 970 852 504
T- TCR22 1,990 1,320 1,068 1,044

T- MAN Turbocharger / T- TCR12 Turbine Housing For Mining, Marine Propulsion And Gensets Engines 0

Brief introduction of turbocharger casing and turbine housing:

The turbocharger casings includes turbine part, bearing part and compressor part, so the turbine housing, bearing casing and compressor housings cover and protect all the important parts safely in the turbocharger to ensure a premium performance of the engine.

A turbine housing (casing) includes a central aperture for containing a turbine blade assembly and directing exhaust gases past the turbine blades in a turbocharger. The turbocharger consists of a single stage impulse turbine connected to a centrifugal impeller via a shaft. The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

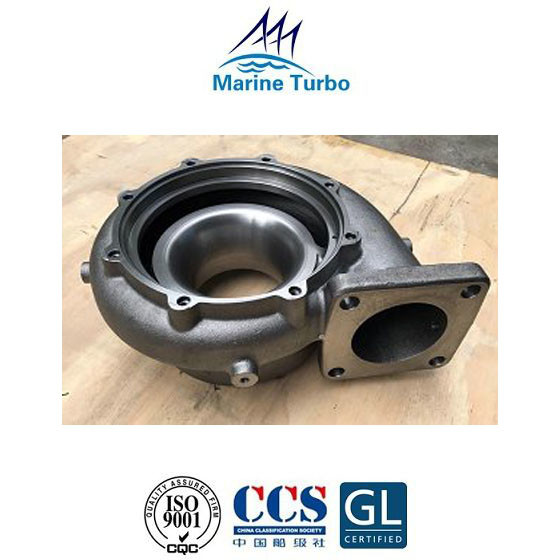

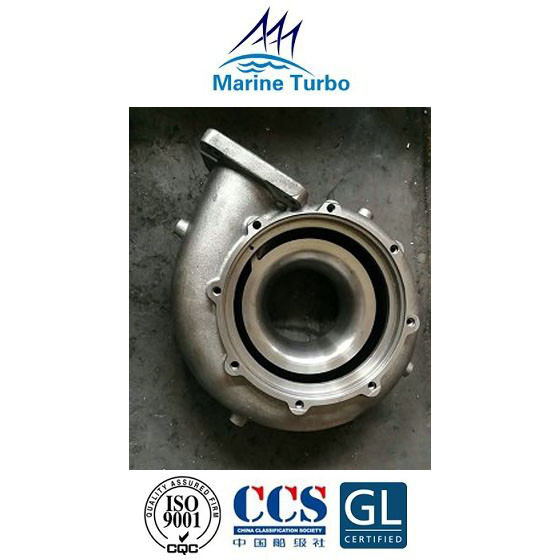

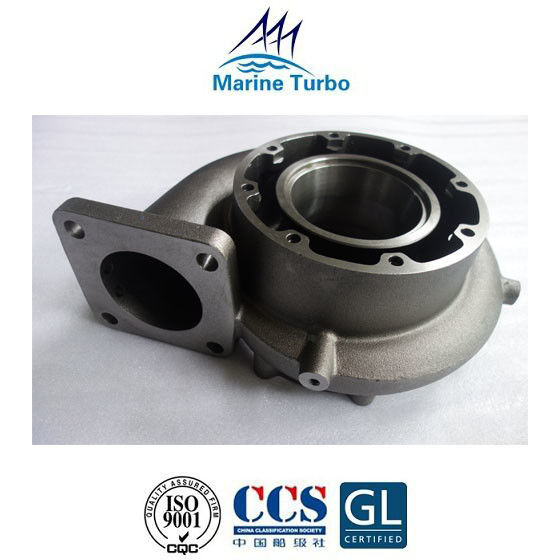

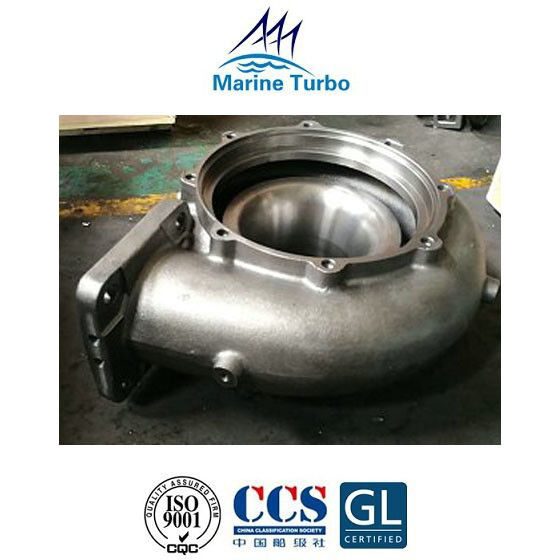

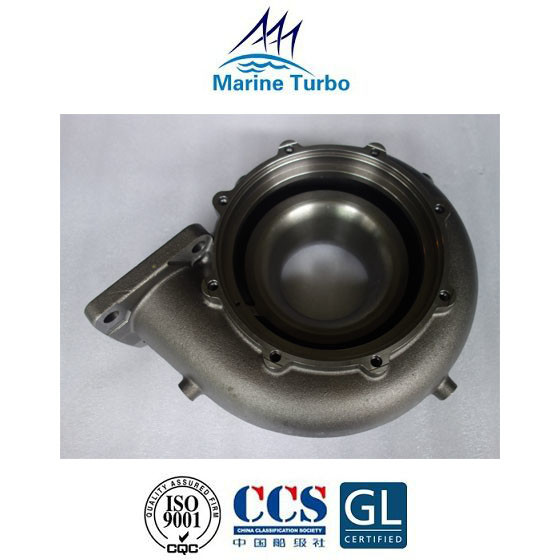

T- TCR12 turbine housing pictures:

T- MAN Turbocharger / T- TCR12 Turbine Housing For Mining, Marine Propulsion And Gensets Engines 1T- MAN Turbocharger / T- TCR12 Turbine Housing For Mining, Marine Propulsion And Gensets Engines 2
