TPS57 Bearing Casing For Diesel ABB Marine Turbocharger Parts Replacement

TPS57 Bearing Casing For Diesel ABB Marine Turbocharger Parts Replacement

ABB / TPS series turbochargers features:

• It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
• it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
• cooled & uncooled bearing casing design.
• The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
• The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
• The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
• It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

TPS series Marine turbocharger dimension and weight only for reference:

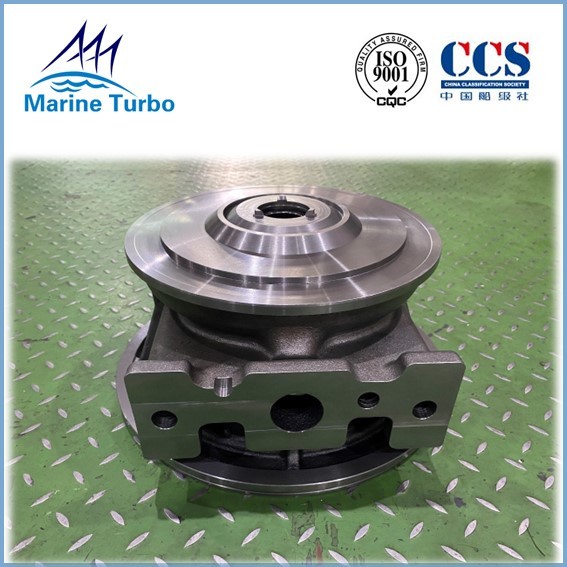

More photos for TPS57 Turbocharger Bearing Casing (bearing housing):

Q&A:

Q1. what are your main products?
A: our main products are turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....

Q2. How can I order it?

A: Before you issue the order, please send the nameplate or spec to us for checking. Then we'll make the quote for you before you send the PO to us.

Q3. Can you supply other type of spare parts for TPS Series?

A: Yes, we can supply the spare parts replacement for TPS44, TPS48, TPS52, TPS57, TPS61.

Q4. What is the warranty?

A: 12 months for fixed parts; 6 months for rotary parts.

Q5. How many years of manufacturing experience have you had on marine turbocharger field?

A: More than 20 years. Our factory was established in 1999.
