VTC254P Turbocharger Rotor Assembly For ABB Diesel Marine Turbo Engine

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO
Model Number: VTC254P
Minimum Order Quantity: 1 pcs
Packaging Details: wood case
Delivery Time: 3-4 working days
Payment Terms: T/T
Supply Ability: 300 pcs / month
Detail Information
Model: VTC254P Product Name: Turbo Rotor Assembly, Rotor Complete
Type: ABB Turbocharger Fuel: Diesel
Engine Output: 1,000kW-3,200kW Pressure Ratio: Up To 3.7
Warranty: 12 Months For Fixed Parts, 6 Months For Rotary Parts Packing: Wood Case Or According To Customer's Request
High Light:

Marine Turbocharger Rotor Complete

,

ABB Turbocharger Rotor Assembly

,

VTC254P Turbocharger Rotor Assembly


Product Description

VTC254P Turbocharger Rotor Assembly For ABB Diesel Marine Turbo Engine



ABB / VTC Turbocharger Features:



VTC254P turbocharger rotor assembly belongs to ABB / VTC series, is created for the diesel engine with an output range from 1,500kW to 3,200kW and is used in the field of marine, power generationa and rail engines.

  • The use of internal plain bearings make VTC turbocharger's high compactness possible;
  • The bearings are lubricated by the engine lube oil system;
  • Water connections at the compressor end, enabling  VTC turbochargers to be washed with water during service.
  • T-VTC series turbocharger's compressor pressure ratio up to 3.7;
  • By using a filter-silencer in the air inlet, the  VTC turbochargers can achieve hight noise reduction.
  • The  VTC turbochargers are of extremely robust design which can last to the lifetime of the engine but undemanding in operation.

Applications

Marine, power generation and rail applications.



VTC turbocharger types and dimension:

T- ABB T- VTC series L (mm) W (mm) H (mm) Weight (kg)*
T- VTC254 1054 704 690 500
T- VTC304 1179 880 820 850

Note:  *inc. a filter silencer without cooling water

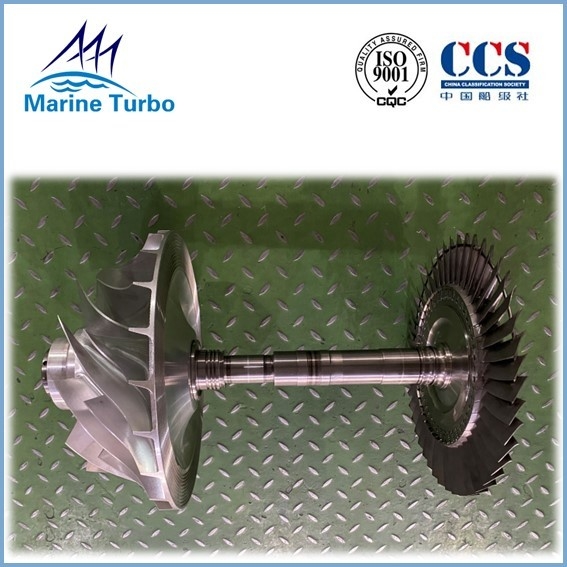

VTC254P Turbocharger Rotor Assembly For ABB Diesel Marine Turbo Engine 0



More picture for TC254P Turbocharger Rotor Assembly:

VTC254P Turbocharger Rotor Assembly For ABB Diesel Marine Turbo Engine 1



Q&A:

Q1. what are your main products?
A: our main products are turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....



Q2. What is the Warranty?

A: 12 months for fixed parts and 6 months for rotary parts.



Q3. what is your terms of delivery?

A: EXW, FOB, CIF



Q4. what is your terms of payment?
A: 100% paid before delivery.



Q5. how about your delivery time?
A: most models are in stock. Generally, we can ship it as soon as receiving your payment. the specific delivery time depends on the items and the quantity of your order.
