Stator Rotor Assembly For MAN Axial Flow Two Stroke Marine Turbocharger Parts

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS
Model Number: TCA66
Minimum Order Quantity: 1 pcs
Packaging Details: Wood case or according to customer's request
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 pcs / month
Detail Information
Model: TCA66 Product Name: Turbo Rotor Assembly,stator Rotor Complete, Rotor Shaft Assembly
Vane Of Impeller: 11 Long And 11 Short Size: Standard Size,As Your Request
Type: MAN Marine Turbocharger Engine Type: Diesel, Diesel And Gas Engine
Turbine Type: Axial Flow, Two-stroke Pressure Ratio: 2-storke: 4.55-4.8; 4-stroke: 5.3-5.5
Warranty: 12 Months For Fixed Parts, 6 Months For Rotary Parts Package: Wood Case Or According To Require
High Light:

Marine Turbocharger Stator Rotor Assembly


2 Stroke Marine Turbocharger Stator Rotor


Marine Turbo Parts Stator Rotor

Product Description

TCA66 Stator Rotor Assembly For MAN Axial Flow Two-Stroke Marine Turbocharger Parts

MAN/TCA series marine turbocharger's features:

  • MAN/ TCA series exhaust gas turbochargers were regarded as the upgraded technology of the previous successful NA series of turbochargers.
  • The TCA series turbocharger is not only clearly increased in efficiency, but also substantially improved in reliability and service life.
  • The TCA Series are developed for constant-pressure turbocharging, with which, the engine exhaust gases flow into a common exhaust manifold, accumulate there and flow with minor pressure fluctuations to the exhaust turbine.
  • The TCA series are designed as axial turbine and can be used in a very wide performance range for the charging of two-stroke and four-stroke diesel and gas powered engines.
  • Engine outputs are from 2,000 kW to 30,000kW per turbocharger and with easy-to-service or maintenance.



TCA series turbocharger is widely used in Marine engine, Power engine and Industrial engine.



TCA66 series marine turbocharger dimension and weight only for reference:

MAN TCA Series L (mm) L(mm) W (mm) H (mm) F (mm) T (mm) A1 (mm) D(mm) Weight (kg)*^
TCA66 2360***
2889 1433 2094 850 1294 649 1625 5308.9

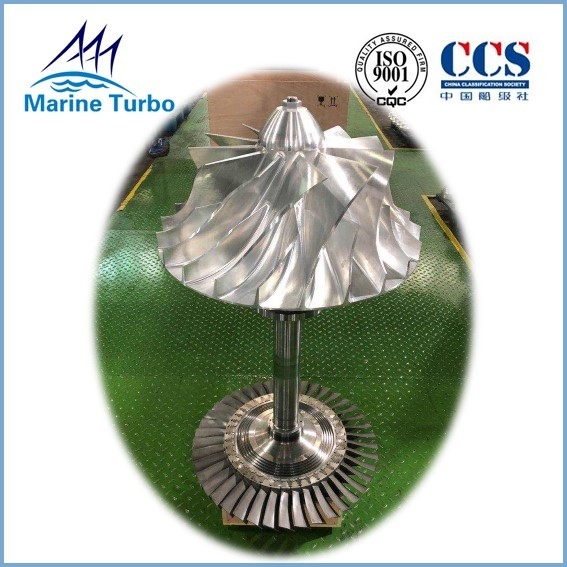

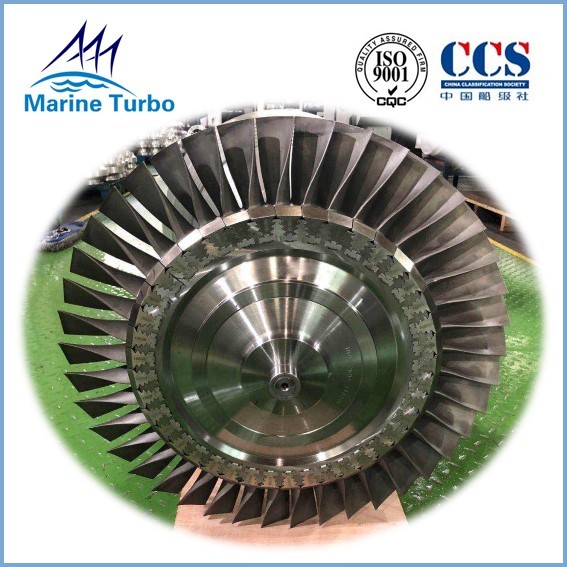

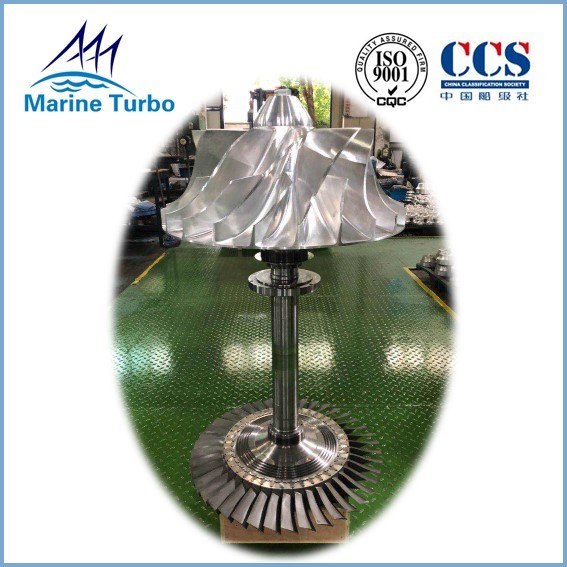

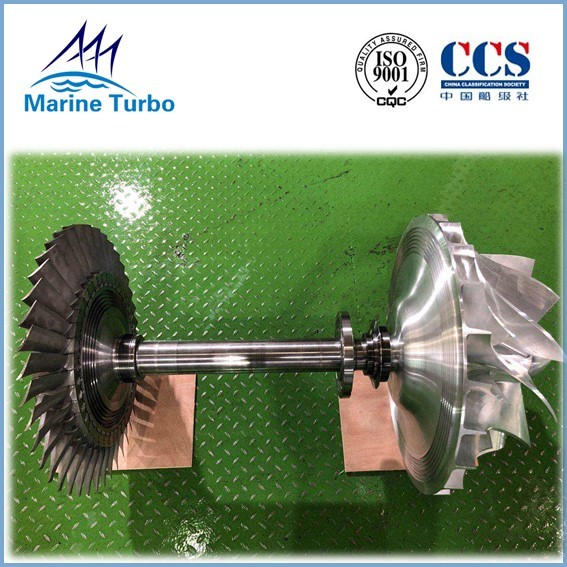

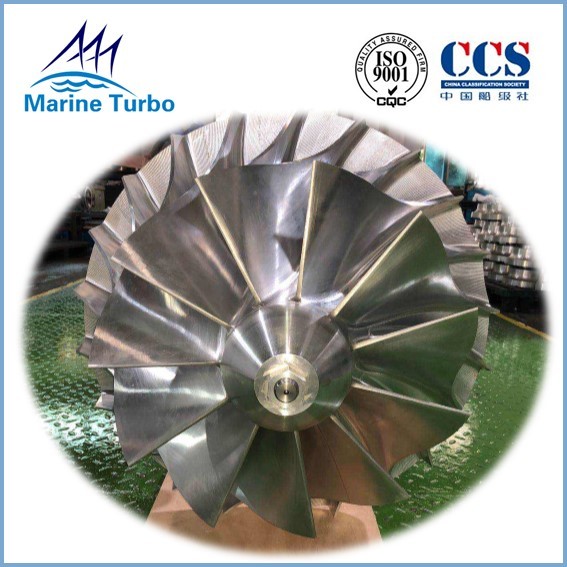

More photos for TCA66 Turbocharger Stator Rotor Assembly ( the vane of impeller is 11 long and 11 short):

Stator Rotor Assembly For MAN Axial Flow Two Stroke Marine Turbocharger Parts 0


Stator Rotor Assembly For MAN Axial Flow Two Stroke Marine Turbocharger Parts 1



Q1. Do you have the TCA 66 rotor complete with vane of impeller  8 long 8 short or 11 long 11 short?

A: We have both.


Q2. Can you supply the turbocharger rotor complete for MAN TCA55?

A: Yes, we can supply. You can search TCA55 Rotor Shaft Assembly in our website for checking.


Q3. What is the Warranty?

A: 12 months for fixed parts and 6 months for rotary parts.


Q4. How many years of manufacturing experience for your factory.

A: Our factory was established in 1999, so we have engaged in manufacturing the marine turbocharger replacement parts for more than 20 years.
