| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | TPS52 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 pcs / month |
| Model: | TPS52 Screw Type Bearing Housing - BS12 | Product Name: | Turbocharger Bearing Casing, Bearing Housing, Bearing Pedestal |
|---|---|---|---|
| Size: | Standard Size, Or As Customer's Request | Type: | Diesel Engine Turbocharger Parts |
| Fuel: | Diesel | Engine Type: | Diesel |
| Turbine Type: | Single Stage Mixed-flow Turbine | Quality: | High Performance, Top And High Level, Guaranteed |
| Certification: | ISO9001, CCS, Or GL | Warranty: | 12 Months |
| Application: | Marine Engine, Drilling And Mining Industry, Generator, Construction/mining/agriculture Machinery | Package: | Carton Box, Wood Box Or According To Require |
| High Light: | BS12 Turbo Bearing Housing,TPS52 Screw Type Bearing Housing,ABB Turbocharger Replacement Parts |
||

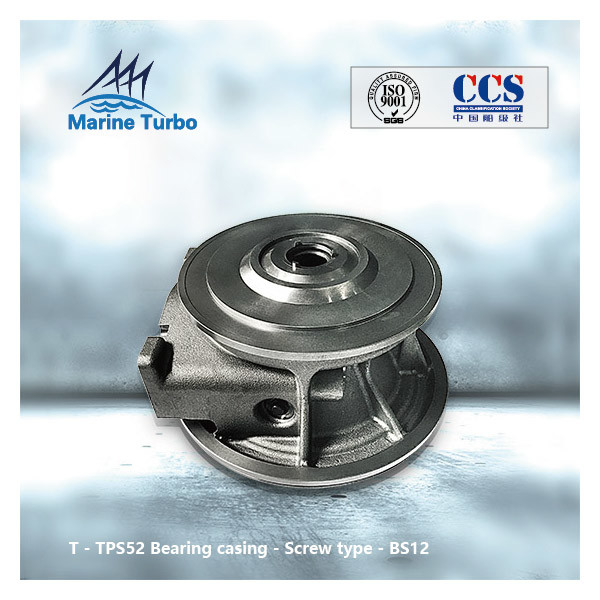

TPS52 turbocharger Screw type bearing housing, also called bearing casing, belongs to one part of ABB / TPS series turbocharger. ABB / TPS series turbocharger is a mixed-flow turbocharger, which consists of single-stage mixed-flow turbine and centrifugal compressor, and adopts inboard support semi-floating sliding bearing and external lube oil system. Single stage of marine turbocharger can meet the requirement of 500kw~3000kw high speed diesel engine. ABB / TPS series marine turbochargers are extensively applicable to marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines due to TPS series turbocharger has the advantages, such as simple and compact structure, firmness, durability, low operating cost, high performance and wide applicability.
| Brand | TPS Series |
| ABB | TPS44 |
| TPS48 | |
| TPS52 | |
| TPS57 | |
| TPS61 |
| Model | Overall Dimensions (mm) | Weight(Kg) | |||||||
| A | B | C | D | E | F | G | H | ||
| TPS48 | 185 | 185 | 111 | 105 | 164 | 195 | 154 | 135 | 115 |
| TPS52 | 220 | 215 | 132 | 129 | 187 | 224 | 186 | 161 | 166 |
| TPS57 | 270 | 260 | 160 | 158 | 232 | 268 | 225 | 195 | 266 |
| TPS61 | 322 | 306 | 193 | 188 | 275 | 320 | 270 | 234 | 458 |
Applications of marine turbocharger replacement parts:
Marine Turbo's turbocharger replacement parts help to power all types of ships, large and small, including container ships, tankers, cargo vessels, cruise ships, tugboats, etc., and also drilling diesel engine, mining machinery with diesel engine.
Quality Assurance of marine turbocharger replacement parts:
All Marine Turbo products must pass all of our strict Quality Assurance procedures and standards, both on receipt from our suppliers, and before dispatch to our many and valued customers. All units are supplied with a full test report and balance report.
Marine Turbo factory has passed the ISO9000 Quality Management System certificate in 2001, and most of turbocharger replacement parts are certificated by CCS and GL.
Marine Turbo services:
Marine Turbo remains at your full disposal for any further inquiries or questions.
