Product Name: | Turbo Bearing Housing, Turbocharger Bearing Pedestals, Marine Turbo Bearing Casing | Model: | / RH183 Bearing Casing |
---|---|---|---|
Type: | Marine Turbocharger | Turbine Type: | Single Stage Turbine |
Quality: | High Perforce, Top And High Level, Guaranteed | Warranly: | 12 Month |
Highlight: | RH183 Turbocharger Bearing Housing,Turbocharger Bearing Housing,ISO No Foot Turbo Bearing Housing |
RH183 Marine Turbocharger belongs to /RH series exhaust gas turbocharger. Itconsists of mixed flow turbine and radial flow compressor. This series of turbocharger can match to high-speed diesel engine. Two types of journal bearing: semi-floating type and full-floating type, in order to prevent the shaft to move. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. Excellent thermal resistance, air and oil sealing perforce and stable bearing system ensure the / RH Series marine turbochargers' reliability and long service lifetime. RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.
Model | Overall Dimension(mm) | Weight | ||||
A | B | C | D | E | Kg | |
RH133 | 765 | 405 | 284 | 323 | 393 | 54 |
RH143 | 908 | 456 | 316 | 361 | 458 | 146 |
RH163 | 981 | 537 | 362 | 426 | 533 | 159 |
RH183 | 1188 | 655 | 443 | 518 | 656 | 289 |

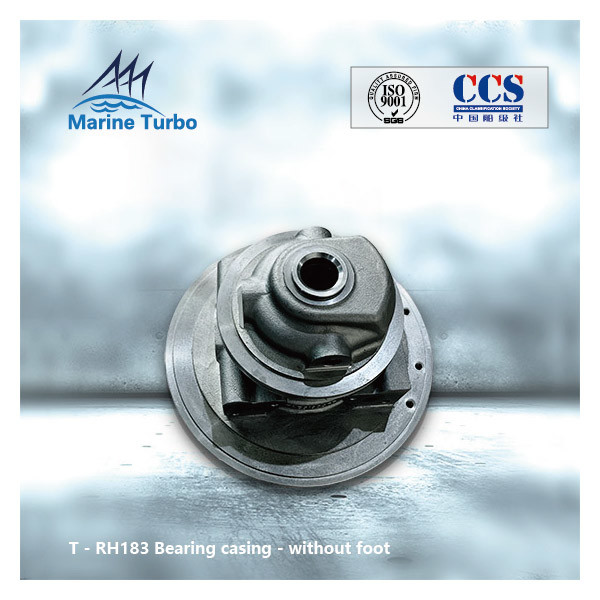

/ RH183 turbocharger bearing casing (bearing housing or bearing pedestal) pictures:
