T- MAN Marine Turbocharger Diffuser T- NR12/S Without Sand Blast In Radial Flow Turbine Type

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS; GL
Model Number: T- NR12/S
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detail Information
Model: T- NR12/S Turbocharger Diffuser Product Name: Turbocharger Diffusor, Marine Turbocharger Diffuser, Marine Turbo Diffuser,
Size: Standard Size, Or As Customer's Request Type: T- MAN T- NR Turbocharger
Fuel: Heavy Fuel Oil, Marine Diesel Oil, Biofuel And Gas Operation Engine Type: Diesel, Biofuel And Gas Engines
Turbine Type: Radial Flow Pressure Ration: Max. 4.5
Permiss. Temp.: Max. 650°C Quality: High Performance, Top And High Level, Guaranteed
Warranty: 12 Months Package: Wood Case, Carton Box Or According To Require
High Light:

marine turbocharger kits


turbo replacement parts


T- MAN Marine Turbocharger Diffuser

Product Description

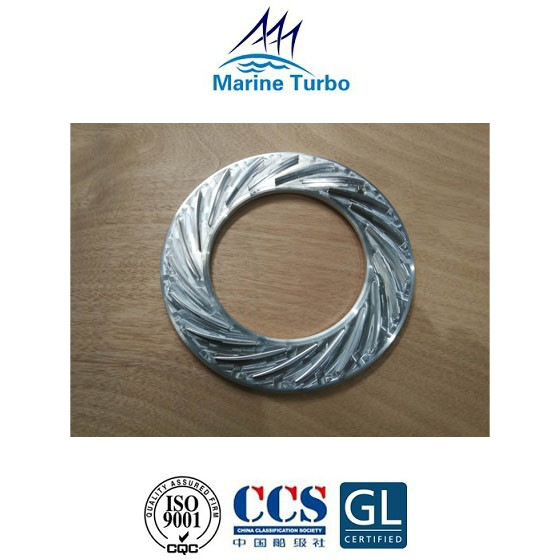

T- MAN Marine Turbocharger Diffuser T- NR12/S Without Sand Blast In Radial Flow Turbine Type

T- NR12/S marine turbocharger diffuser is one part of T- MAN / T- NR series turbochargers and which were designed comparatively simply with a cast radial turbine, which is suitable for heavy fuel oil engines, marine diesel oil engines, biofuel and gas operation enginess. Products are available for a wide engine power range, from 450 kW to 5400kW per turbocharger and without compromise in reliability and performance.


T- NR series turbocharger is widely used in ship building, locomotive, land power station and petroleum drilling industries, extensively applicable to in-land and coastal transportation and fishing due to its high efficiency, small size, light weight, favorable maintainability and serviceability, adequate supply of spare parts.

T- MAN / T- NR series turbocharger dimension and weight only for reference:

Type L(mm) W(mm) H(mm) Weight (kg)
T- NR12/S 858 402 432 155
T- NR15/R 715-724 500-520 525-672 200
T- NR20/R 900-960 662-692 700-730 400
T- NR20/S 1,165 715 678 350
T- NR24/S 1470 748 838 505

T- MAN / T- NR12/S turbocharger cartridge picture:

T- MAN Marine Turbocharger Diffuser T- NR12/S Without Sand Blast In Radial Flow Turbine Type 0

The function of turbocharger diffuser:

The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

The diffuser is mounted in the compressor side of the turbocharger in order to direct the air smoothly into volute casing and Convert kinetic energy to pressure energy inlet air.

Brief introduction of marine turbocharger:

The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.

When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
