| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | T-TPS Series |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 pcs / month |
| Model: | T-TPS52 Turbo Compressor Wheel | Type 3: | T-ABB Marine Turbocharger Parts |
|---|---|---|---|
| Fuel: | Diesel | Certification: | ISO9001, CCS, Or GL |
| Warranty: | 12 Months | Application: | Marine Engine, Drilling And Mining Industry, Generator, Construction/mining/agriculture Machinery |
| High Light: | compressor impeller,marine replacement parts,T-TPS52 Turbo Replacement Parts |
||

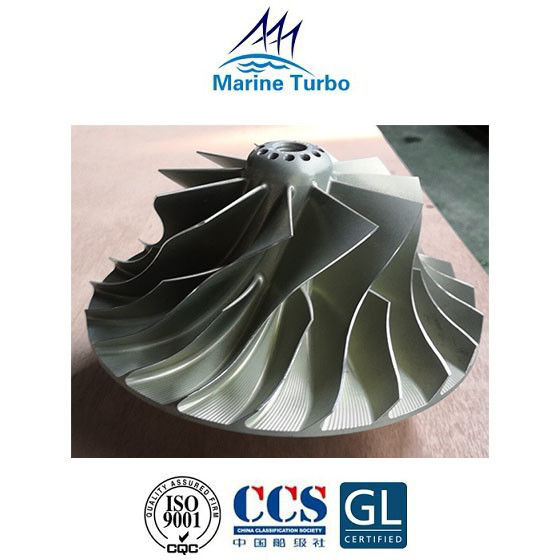

T-TPS52 Turbo Compressor Wheel Turbocharger bearings work under high temperature, high speed and light load conditions to ensure reliable operation of the bearings under working conditions. In addition to ensuring that the structural design, materials and manufacturing of the bearings to meet the requirements, good maintenance management is also critical important.
T-TPS series Marine turbocharger dimension and weight only for reference:
| Model | Overall Dimensions (mm) | Weight(Kg) | |||||||
| A | B | C | D | E | F | G | H | ||
| TPS48 | 185 | 185 | 111 | 105 | 164 | 195 | 154 | 135 | 115 |
| TPS52 | 220 | 215 | 132 | 129 | 187 | 224 | 186 | 161 | 166 |
| TPS57 | 270 | 260 | 160 | 158 | 232 | 268 | 225 | 195 | 266 |
| TPS61 | 322 | 306 | 193 | 188 | 275 | 320 | 270 | 234 | 458 |
Option Moban 3-2 (can add in one moban or delete in another moban): Marine turbocharger/Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.
Marine Turbo has been specialized in turbocharger spare parts replacement for Marine, drilling and Mining industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium quality product and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for T-MAN, T-ABB, T-KBB, T-MET, T-IHI and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance, repair or overhaul needs for various brands with a quick response and a reasonable price.
Marine Turbo also can provide product customization services to meet the personalized needs of customers. According to the sample or drawings provided by customers, Marine Turbo can process and manufacture the corresponding products in order to provide customers with sound-quality products at low cost.
With over 20 years of manufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....
| T-ABB | T-VTR“0”“1”“4”, P/D/E | |||||
| T-TPS44D/E/F | T-TPS48D/E/F | T-TPS52D/E/F | T-TPS57D/E/F | T-TPS61D/E/F | ||
| T-TPL65 | T-TPL69 | T-TPL73 | T-TPL77 | T-TPL80 | T-TPL85 | |
| T-RR151 | T-RR181 | |||||
| T-A145-M | T-A170 | |||||
| T-MAN | T-NR12/S | T-NR15/R | T-NR17/S | T-NR20 | T-NR20/R | T-NR20/S |
| T-NR24/R | T-NR24/S | T-NR26/R | T-NR29/S | T-NR34/S | ||
| T-NA34T/34S | TNA40T/40S | T-NA48T/48S | T-NA57T/57T9 | T-NA70T/70T9 | ||
| T-TCR12 | T-TCR16 | T-TCR18 | T-TCR20 | T-TCR22 | ||
| T-TCA44 | T-TCA55 | T-TCA66 | T-TCA77 | T-TCA88 | ||
| T-MET | T-MET18SRC | T-MET26SR | T-MET30SR | |||
| T-MET33SB/SBII/SC/SD | T-MET35/35S/35SA/350 | T-MET42SB/SBII/SC/SD/SE | T-MET45/45S/450 | T-MET53SB/SBII/SC/SD/SE | ||
| T-MET66SB/SC/SD | 56S-B | 560 | 60MA | 66SB/SC/SD/SE/SEII | ||
| T-MET53SE | ||||||
| T-MET83SE | T-MET83SEII | |||||
| T-KBB | T-HPR3000 | T-HPR4000 | T-HPR5000 | T-HPR6000 | ||
| ST5 SERIES | ||||||
| T-HRBR3-2 | T-HRBR4-3 | |||||
| T-IHI | T-RH133 | T-RH143 | T-RH163 | T-RH183 | T-RH203 | |
| T-AT14 | ||||||
| T-RU110 | T-RU120 |
Marine Turbo also can supply some types of T/C Complete, sucah as T-RH133/163, T-AT14, T-TCR12, T-TD08H, etc.
Currently, Marine Turbo has stock for original new turbocharger complete: T-RH143 1 pc, T-RH163 1 pc , T-RH183 1pc; and also has the stock for secondary-hand turbocharger complete: T-VTR714D 3 pcs；T-NA57T7 2 pcs,T-NA48/S 1 pc,T-NA48/T 2 pcs,T-MET66SD 1 pc.
Marine Turbo's turbocharger replacement parts help to power all types of ships, large and small, including container ships, tankers, cargo vessels, cruise ships, tugboats, etc., and also drilling diesel engine, mining machinery with diesel engine.
All Marine Turbo products must pass all of our strict Quality Assurance procedures and standards, both on receipt from our suppliers, and before dispatch to our many and valued customers. All units are supplied with a full test report and balance report.
Marine Turbo factory has passed the ISO9000 Quality Management System certificate in 2001, and most of turbocharger replacement parts are certificated by CCS and GL.
Marine Turbo remains at your full disposal for any further inquiries or questions.
