T- TPS48 Turbocharger Service Kit

T- TPS48 Turbocharger Service Kit

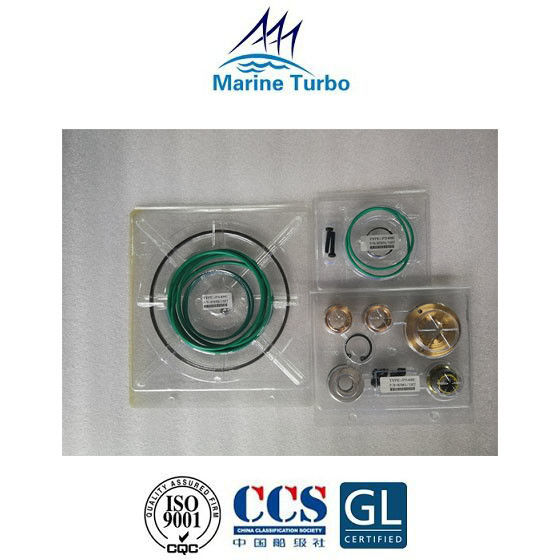

T-TPS48 Turbo Repair Kit includes bearings. the Turbo Bearing plays an important role in marine turbochargers.

• They not only ensure safe and reliable high-speed rotation of the rotor, but also ensure that the rotor is fixed in the correct position.
• Therefore, the reliability of the bearing is extremely relevant to the normal operation of the supercharger and the diesel engine.
• Turbocharger bearings are divided into rolling and sliding, marine superchargers mostly use rolling bearings, in addition to thrust bearings.
• The rolling bearing has a small friction coefficient, generates less heat, and consumes less lubricating oil, which simplifies the lubrication system.
• Generally, the turbine oil only needs to be provided with an oil pool and a self-contained oil pump.
• Rolling bearings are easy to assemble and disassemble, have good starting perforce and high efficiency.
• However, due to its service life limit, the specified service life must be replaced after the expiration of the service life.
• The sliding bearing of turbo bearings has a simple structure and low cost, and can be used with the same lubrication system of the diesel engine or a special external oil supply device, so that the overall structure of the marine turbocharger is complicated, and maintenance and agement requirements are high, otherwise it is prone to failure.

T-TPS Models includes:

Brief introduction of Marine turbocharger:

When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance agement can reduce these failures.
