|Model:||T-ABB / T-TPL||Product Name:||Turbocharger Bladed Shaft, Marine Turbo Bladed Shaft|
|Size:||Standard Size, Or As Customer's Request||Type1:||Exhaust Gas Turbocharger|
|Type 2:||Diesel Engine Turbocharger And Gas Engine Turbocharger||Type 3:||T-ABB Marine Turbocharger|
|Fuel:||Diesel, Fuel, Heavy Fuel Oil||Engine Type:||Diesel Engine And Fuel Engine|
|Turbine Type:||Axial Turbine||Compressor Type:||Radial Compressor|
|Pressure Ratio:||4.2-5.0||Power Range:||2,500-12,500kW For T-TPL-A; 3,000-28,000kW For TPL-B|
|Noise:||Low Noise Emission||Quality:||High Efficiency, Easy To Service, Guaranteed|
|Certification:||ISO9001, CCS, Or GL||Warranty:||12 Months|
|Application:||Marine Engine, Oil And Gas Offshore, Power Generation||Package:||Wood Case, Carton Box Or According To Require|
turbo replacement parts,
marine turbocharger kits,

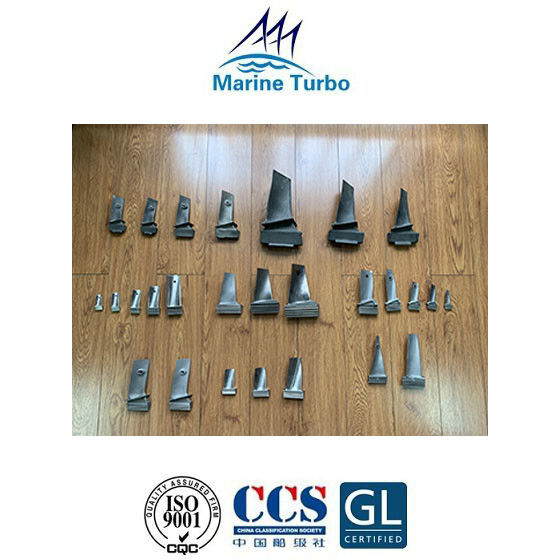

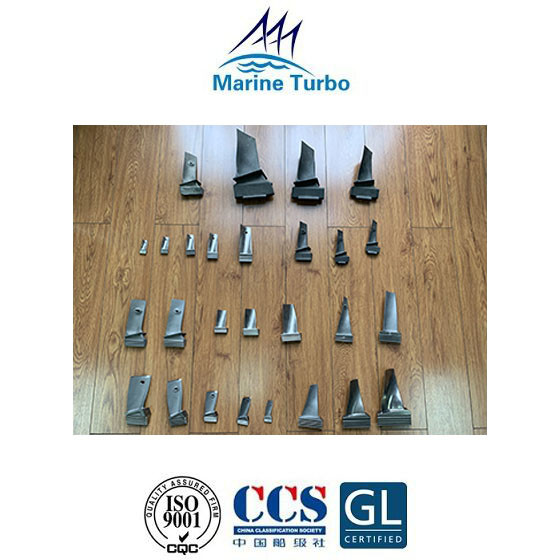

Turbine Blade Turbocharger Replacement Parts
T-TPL SERIES Turbine Blade type turbocharger belongs to T-TPL-A series. The T-TPL-A series turbocharger is for large medium-speed diesel and gas engines,
with a power output range from2,500kW to 12,500kW.
T-TPL-A Series includes:
|T-ABB||T-TPL-A Series||A(mm)||B(mm)||C(mm)||D(mm)||E(mm)||F(mm)||G(mm)||Weight (kg)*|
Note: *includes filter silencer.
T-TPL65 bladed shaft is non-assembly type of shaft:
Brief introduction of Marine turbocharger:
The marine turbocharger, also known as exhaust gas turbocharger, is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the marine turbocharger/exhaust gas turbocharger - the rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved. The exhaust turbocharger approximately doubles the power of the diesel engine, but its weight is only increased 10%.
Marine turbocharger/Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.
When the diesel-exhaust turbocharger combination is in operation, the marine turbocharger/exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance management can reduce these failures.
Marine Turbo has been specialized in turbocharger spare parts replacement for Marine, drilling and Mining industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium quality product and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for T-MAN, T-ABB, T-KBB, T-MET, T-IHI and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance, repair or overhaul needs for various brands with a quick response and a reasonable price.
Marine Turbo supply marine turbocharger replacement parts:
With over 20 years of manufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....
Marine Turbo also can supply some types of T/C Complete, sucah as T-RH133/163, T-AT14, T-TCR12, T-TD08H, etc.
Currently, Marine Turbo has stock for original new turbocharger complete: T-RH143 1 pc, T-RH163 1 pc , T-RH183 1pc; and also has the stock for secondary-hand turbocharger complete: T-VTR714D 3 pcs；T-NA57T7 2 pcs,T-NA48/S 1 pc,T-NA48/T 2 pcs,T-MET66SD 1 pc.
Marine Turbo's turbocharger replacement parts help to power all types of ships, large and small, including container ships, tankers, cargo vessels, cruise ships, tugboats, etc., and also drilling diesel engine, mining machinery with diesel engine.
