| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | T- TCR12 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 pcs / month |
| Model: | T- TCR12 | Engine Type: | Diesel, Biofuel And Gas Engines |
|---|---|---|---|
| Turbine Type: | Radial Flow | Two Stroke: | T- TCR18, T- TCR20, T- TCR22 |
| Four Stroke: | T- TCR10, T- TCR12, T- TCR14, T- TCR16 | Certification: | ISO9001, CCS, Or GL |
| Application: | Marine Propulsion, Excavators, Locomotives, Power Generation, Off-road Vehicles, Machanical Drive, Mining, Marine Gensets | Package: | Wood Case, Carton Box Or According To Require |
| Highlight: | turbo replacement parts,turbo spare parts,T- TCR12 Marine Turbo Diffuser |
||

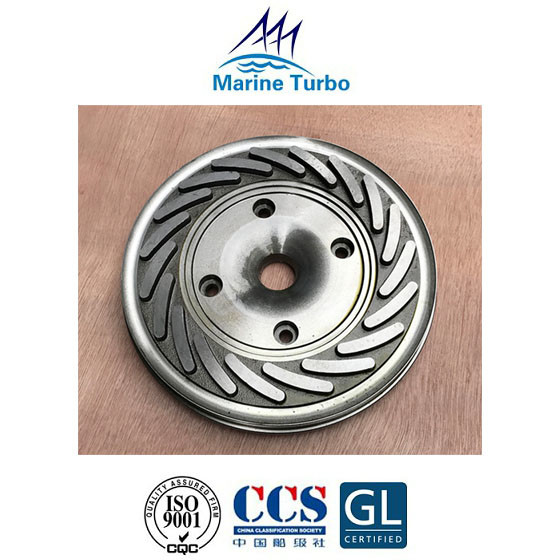

T- TCR12 Turbocharger Turbine Diffuser belongs to T- / T- TCR series exhaust gas turbocharger and which was disigned to meet the growing deds for high turbocharging two-stroke, four-stroke diesel engines and gas engines.
| T- | T- TCR Series | L (mm) | H (mm) | W (mm) | Weight (kg) |
| T- TCR10 | 860 | 410 | 327 | 48 | |
| T- TCR12 | 889 | 496 | 401 | 78 | |
| T- TCR14 | 950 | 623 | 534 | 108 | |
| T- TCR16 | 1,091 | 658 | 590 | 175 | |
| T- TCR18 | 1,311 | 870 | 730 | 306 | |
| T- TCR20 | 1,662 | 970 | 852 | 504 | |
| T- TCR22 | 1,990 | 1,320 | 1,068 | 1,044 |
The engine exhaust gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.
The diffuser is mounted in the compressor side of the turbocharger in order to direct the air smoothly into volute casing and Convert kinetic energy to pressure energy inlet air.
