| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Marine Turbo |
| Certification: | ISO; CCS; GL |
| Model Number: | T- RR181 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Carton box, wood case |
| Delivery Time: | 1-4 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 pcs / month |
| Model: | T- ABB / T- RR181 | Product Name: | Turbocharger Rotor Assembly, Marine Turbo Rotor Complete |
|---|---|---|---|
| Size: | Standard Size, Or As Customer's Request | Type: | Diesel Engine Turbocharger And Gas Engine Turbocharger |
| Fuel: | Diesel, Fuel | Engine Type: | High-speed Diesel Engine And Fuel Gas Engine |
| Turbine Type: | Mixed-flow Turbine | Compressor Type: | Radial Compressor |
| Pressure Ratio: | 3.5 | Power Range: | 500 - 1,800 KW |
| Fuel Consumption: | Lower Engine Fuel Consumption | Quality: | High-output, High Efficiency, Lower Engine Fuel Consumption, Guaranteed |
| Certification: | ISO9001, CCS, Or GL | Warranty: | 12 Months |
| High Light: | turbocharger rotor complete,marine turbo kits,High Speed Turbocharger Rotor Assembly |
||
T- RR181 turbocharger rotor assembly (also called rotor complete) belongs to T- ABB / T- RR series turbocharger. The T- RR series turbocharger is a lightweight, low-cost turbocharger with robust design, offering high efficiency, high gas-inlet temperature capability and good compressor characteristics. The T-RR is designed for an output range of about 500 kW to 1,800 kW. T-RR series turbochargers are ideal for high-speed diesel engines and gas engines which developed for higher outputs and lower engine fuel consumption. It's used on diesel marine engine, rail as well as earthmoving and mining equipment.
| T- ABB Turbocharger | T- RR Series |
| T- RR131 | |
| T- RR151 | |
| T- RR181 | |
| T- RR221 |
| T- ABB | T- RR Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | Weight (kg)* |
| T- RR131 | 210 | 375.5 | 326.5 | 314 | 106 | 130 | 182 | 121 | 141 | 64 | |
| T- RR151 | 232.5 | 432.5 | 371.5 | 362 | 121 | 139.5 | 210 | 140 | 161.5 | 103 | |
| T- RR181 | 284.5 | 527.5 | 488 | 443 | 148 | 170.5 | 258 | 170.5 | 197.5 | 184 | |
| T- RR221 | 348.5 | 642 | 585.5 | 542 | 181 | 209 | 314 | 255 | 241.5 | 334 |
Note: *without filter silencer/suction branch and without cooling water.

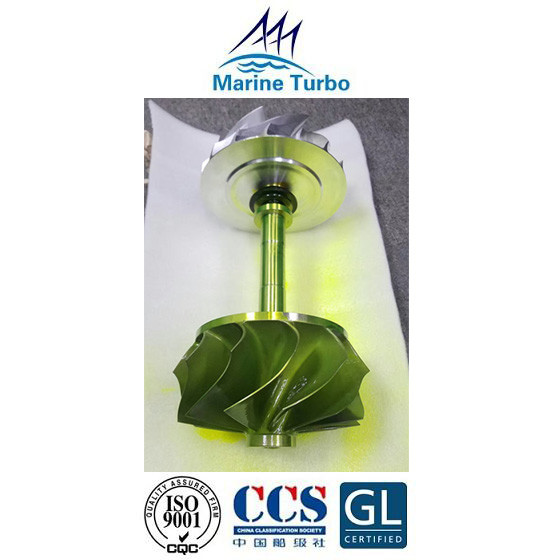

The turbocharger rotor assembly / rotor complete consists of compressor impeller, blade shaft or turbine shaft and turbine blade.
