T- IHI / T- RH143 Turbo Bearing Bush turbo seal For Marine Turbocharger Parts

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS; GL
Model Number: T- RH143
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-2 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detail Information
Model: T- RH143 Product Name: Marine Turbocharger Bearing, Turbo Bearing Bush
Type: Exhaust Gas Turbocharger Fuel: Diesel
Engine Type: Diesel Certification: ISO9001, CCS, Or GL
High Light:

turbo replacement parts


marine turbo kits


Marine Replacement Parts Turbo Bearing

Product Description

T- IHI / T- RH143 Turbo Bearing Bush turbo seal For Marine Turbocharger Parts


T- IHI / T- RH series marine turbocharger:

T- RH143 Turbo Bearing bush belongs to T- IHI / T- RH series exhaust gas turbocharger, which consists of single-stage mixed flow turbine and radial flow compressor. This series of turbocharger can be used to match high-speed diesel engine. Inboard plain bearing is lubricated by the engine oil system. A seal plate and seal ring located in compressor side in order to prevent the air and oil leaking. The turbocharging efficiency is 60%-62%, and its compressor pressure ratio up to 3.6. T- RH series turbochargers are widely used in automotive, heavy truck, construction, marine and industrial engine.

  • Superior performance: the special design for its compressor wheels and turbine wheels make the high flow rate, wide operating ranges and super response possible.
  • Two types of journal bearing: semi-floating type and full-floating type, in order to prevent the shaft to move.
  • Compact design: T- RH series is developed to reduce in size and weight, but maintain the necessary strength.


The definition of bearing bush:

A bush, also known as a bushing, is an independent plain bearing that is inserted into a housing to provide a bearing surface for rotary applications; bush is the most common form of a plain bearing. It’s commonly designed to be solid (sleeve and flanged), split, and clenched bushings.

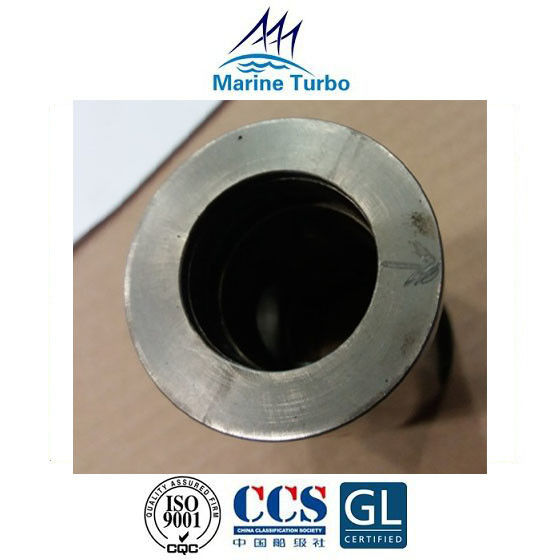

More photo of T- IHI / T- RH143 marine turbo bearing bush:

T- IHI / T- RH143 Turbo Bearing Bush turbo seal For Marine Turbocharger Parts 0


T- RH series Marine turbocharger dimension and weight only for reference:

Model Overall Dimension(mm) Weight
  A B C D E  Kg
T- RH133 765 405 284 323 393 54
T- RH143 908 456 316 361 458 146
T- RH163 981 537 362 426 533 159
T- RH183 1188 655 443 518 656 289

T- IHI / T- RH143 Turbo Bearing Bush turbo seal For Marine Turbocharger Parts 1

Brief introduction of Marine turbocharger:

Marine turbocharger / Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.
