Name: T- TPS Series Turbo Compressor Impeller For Mixed-Flow Type Turbine
Brand: Marine Turbo Service
SKU: T- TPS Series
Availability: InStock

Detail Information

Model:	T- TPS Series Turbo Compressor Impeller	Product Name:	Turbo Compressor Impeller, Marine Turbocharger Compressor Wheel
Size:	Standard Size, Or As Customer's Request	Type:	Exhaust Gas Turbocharger Parts
Fuel:	Diesel	Engine Type:	Diesel
Turbine Type:	Single Stage Mixed-flow Turbine	Quality:	High Perforce, Top And High Level, Guaranteed
Warranty:	12 Months
Highlight:	marine replacement parts , turbo spare parts , T- TPS Series Turbo Compressor Impeller

Product Description

T- TPS Series Turbo Compressor Impeller For Mixed-Flow Type Turbine

T- TPS series marine turbocharger features:

T- TPS series turbo compressor impeller (compressor wheel) belongs to one part of T- TPS series marine turbocharger with the features as following:

It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
cooled & uncooled bearing casing design.
The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

T- TPS turbocharger types include:

Brand	T- TPS Series
Marine Turbo	T- TPS44
	T- TPS48
	T- TPS52
	T- TPS57
	T- TPS61

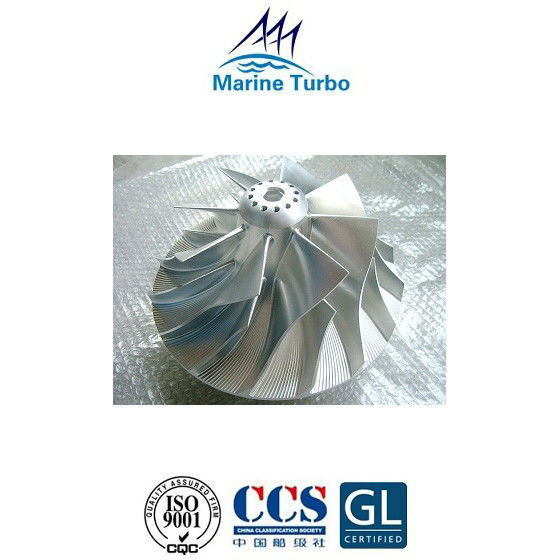

T- TPS series turbo compressor impeller picture:

T- TPS Series Turbo Compressor Impeller For Mixed-Flow Type Turbine 0

Turbo compressor impeller (compressor wheel) description:

T- TPS series turbo compressor impeller is made of aluminium alloy or the more expensive titanium. ufactured from a single casting it is located on the rotor shaft by splines. Aluminium impellers have a limited life, due to creep, which is dictated by the final air temperature. Often the temperature of air leaving the impeller can be as high as 200°C. The life of the impeller under these circumstances may be limited to about 70000 hours.

Tag:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO
Model Number:	T- TPS Series

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T
Supply Ability:	1000 pcs / month
