T- MAN Turbocharger / T- TCA Series Marine Turbo Turbine Blade For Diesel And Gas Powered Engines

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Marine Turbo
Certification: ISO; CCS; GL
Model Number: T- TCA Series
Minimum Order Quantity: 1 pcs
Packaging Details: Carton box, wood case
Delivery Time: 1-4 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detail Information
Model: T- TCA Series Product Name: Turbocharger Turbine Blades, Marine Turbocharger Turbine Blade
Size: Standard Size, Or As Customer's Request Type: T- MAN Exhaust Gas Turbocharger
Fuel: Marine Diesel Oil, HFO And Gas Operation Engine Type: Diesel-powered And Gas-power Engines
Engine Outputs: 2000 KW -30,000kW Turbine Type: Axial Flow, Two-stroke And Four-stroke
Two-stroke Types: T- TCA44, T- TCA55, T- TCA66, T- TCA77, T- TCA88 Four-stroke Types: T- TCA33, T- TCA44, T- TCA55, T- TCA66, T- TCA77, T- TCA88
Pressure Ratio: 2-storke: 4.55-4.8; 4-stroke: 5.3-5.5 Turbine Exhaust-gas Temperature: 2-storke: Max. 500℃; 4-stroke: Max. 650℃
Bearing Design: Inboard Plain Bearing Design Quality: High Performance, Top And High Level, Guaranteed
Certification: ISO9001, CCS, Or GL Warranty: 12 Months
Application: Marine Engine, Power Engine And Industrial Engine Package: Wood Case, Carton Box Or According To Require
High Light:

turbine shaft

,

turbo replacement parts

,

T- TCA Series Marine Turbo Turbine Blade


Product Description

T- MAN Turbocharger / T- TCA Series Marine Turbo Turbine Blade For Diesel And Gas Powered Engines

T- MAN / T- TCA series exhaust gas turbochargers description:

T- TCA series turbine blade belongs to one part of T- MAN / T- TCA series exhaust gas turbochargers, which were regarded as the upgraded technology of the previous successful T- NA series of turbochargers. The T- TCA series turbocharger is not only clearly increased in efficiency, but aslo substantially improved in reliability and service life. The T- TCA Series are developed for constant-pressure turbocharging, with which, the engine exhaust gases flow into a common exhaust manifold, accumulate there and flow with minor pressure fluctuations to the exhaust turbine.

The T- TCA series are designed as axial turbine and can be used in a very wide performance range for the charging of  two-stroke and four-stroke diesel and gas powered engines. Engine outputs are from 2,000 kW to 30,000kW per turbocharger and with easy-to-service or maintenance.

T- MAN / T- TCA series marine turbocharger's features:

  • T- MAN / T- TCA series exhaust gas turbocharger is a axial-flow turbocharger with wide application range of two-stroke and four-stroke engines.
  • For engine power output range from 2000 to 30000 kW per turbocharger;
  • Axial flow turbine inboard high performance plain bearing design;
  • Whispering silencer with air filter;
  • Low-noise, Easy maintenance compressor wheel due to it special fastening method;
  • Uncooled bearing casing;
  • Easy access to thrust bearing;
  • Integrated sealing air, oil pipe and venting systems;
  • High efficient diffuser;
  • Long-life and adjustable nozzle ring;
  • High efficiency of turbine blades is designed to be possible to omit the otherwise usual damping wire in the blade ring both for 2-stroke and 4-stroke engines;
  • Suitable for heavy fuel, diesel oil, biofuel and gas operation;
  • widely used in marine, power and industrial applications of diesel-powered and gas-powered engines.

Applications:

T- TCA series exhaust gas turbocharger is widely used in Marine engine, Power engine and Industrial engine.

T- MAN / T- TCA series turbocharger includes:

T- MAN TURBOCHARGER T- TCA Series
T- TCA33
T- TCA44
T- TCA55
T- TCA66
T- TCA77
T- TCA88

T- MAN / T- TCA series marine turbocharger dimension and weight only for reference:

T- MAN T-TCA Series

T- MAN Turbocharger / T- TCA Series Marine Turbo Turbine Blade For Diesel And Gas Powered Engines 0

L (mm)

T- MAN Turbocharger / T- TCA Series Marine Turbo Turbine Blade For Diesel And Gas Powered Engines 1

L (mm)
W (mm) H (mm) F (mm) T (mm) A1 (mm) D(mm) Weight (kg)*^
T- TCA33 1558 1606 802 1021***** 443 832 476 996 1372.1
T- TCA44 - 2194 1054 1614 600 945 534 1000 2200
T- TCA55 2167***
2224****
2461 1206 1935*
1825**
850*
740**
1090 551 1371 3201.6
T- TCA66 2360***
2407****
2889 1433 2094 850 1294 649 1625 5308.9
T- TCA77 2782 3416 1694 2561*
2371**
1200*
1010**
1538 754 1930 8325.3
T- TCA88 3316 4022 2012 2734 1200 1825 880 2270 13410

*Casing feet, high
**Casing feet, low
***Axial gas admission casing D=360mm
****Axial gas admission casing D=300mm or dual-channel
*****Height H without gravitation tank
*^With silencer and for four-stroke engines only for reference

T- MAN Turbocharger / T- TCA Series Marine Turbo Turbine Blade For Diesel And Gas Powered Engines 2

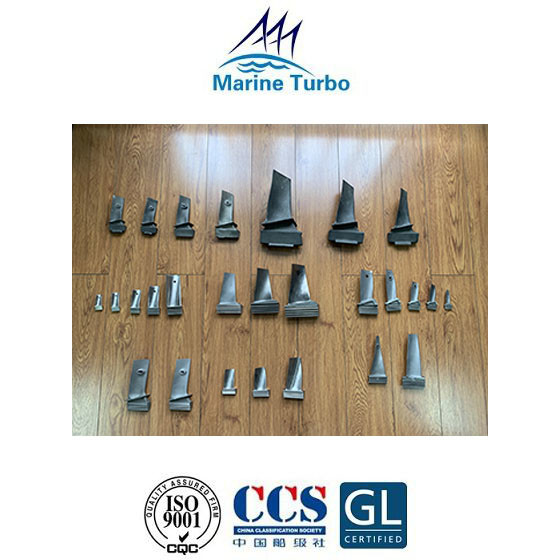

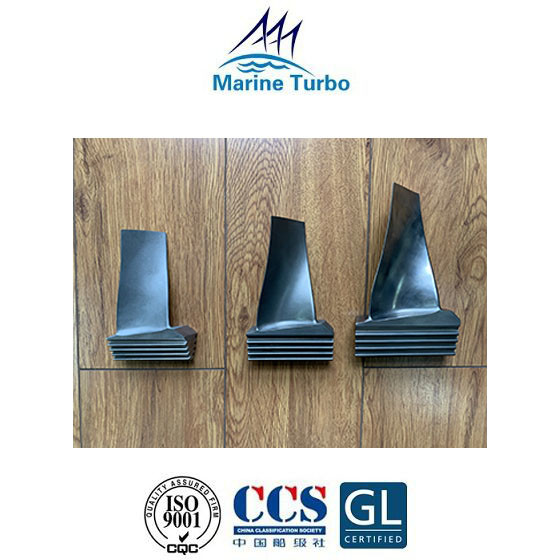

The T- MAN / T- TCA series turbine blade picture:

T- MAN Turbocharger / T- TCA Series Marine Turbo Turbine Blade For Diesel And Gas Powered Engines 3

The function of turbine blade:

Turbine blades are an important component of the turbine section of a diesel or gas powered engine. The blades that rotate at high speed are responsible for drawing high temperature and high pressure air into the combustor so that to maintain the engine's operation. In order to ensure long-term stability in extreme environments of high temperature and high pressure, turbine blades are often forged with high-temperature alloys and used in different ways to cool, for example, internal airflow cooling, boundary layer cooling, or thermal barrier coatings that protect the blades, to guarantee the reliability of turbine blades during turbocharger's operation.
